Key Features
1 x Gigabit SFP WAN Port
1 x Gigabit RJ45 WAN Port
2 x Gigabit RJ45 WAN/LAN Ports
2 x Gigabit RJ45 LAN Ports
291.6 Mb/s IPsec VPN Throughput
IPsec, PPTP, L2TP, OpenVPN Support
Multi-WAN Load Balancing
Firewall
Up to 150,000 Concurrent Sessions
Works with Omada App
Secure your business network with the ER7206 Omada Gigabit VPN Router from TP-Link. Designed for high flexibility, this VPN router features one Gigabit SFP WAN port alongside three RJ45 Gigabit Ethernet ports, two of which can be freely switched between WAN and LAN modes. They work alongside two dedicated RJ45 Gigabit LAN ports to manage multiple internet connections through one device. With the multi-WAN Load Balancing function, data streams are distributed according to the bandwidth proportion of every connected WAN port to optimize multi-line broadband utilization.
The ER7206 also provides comprehensive security coverage with IPSec, PPTP, and L2TP VPN support over the IPSec/SSL protocols in addition to VLAN support and advanced firewall policies. The IPsec VPN has a throughput of up to 291.6 Mb/s and can handle up to 150,000 concurrent sessions. Use the Omada app to configure your ER7206 VPN router and other compatible network devices from almost anywhere, at any time.

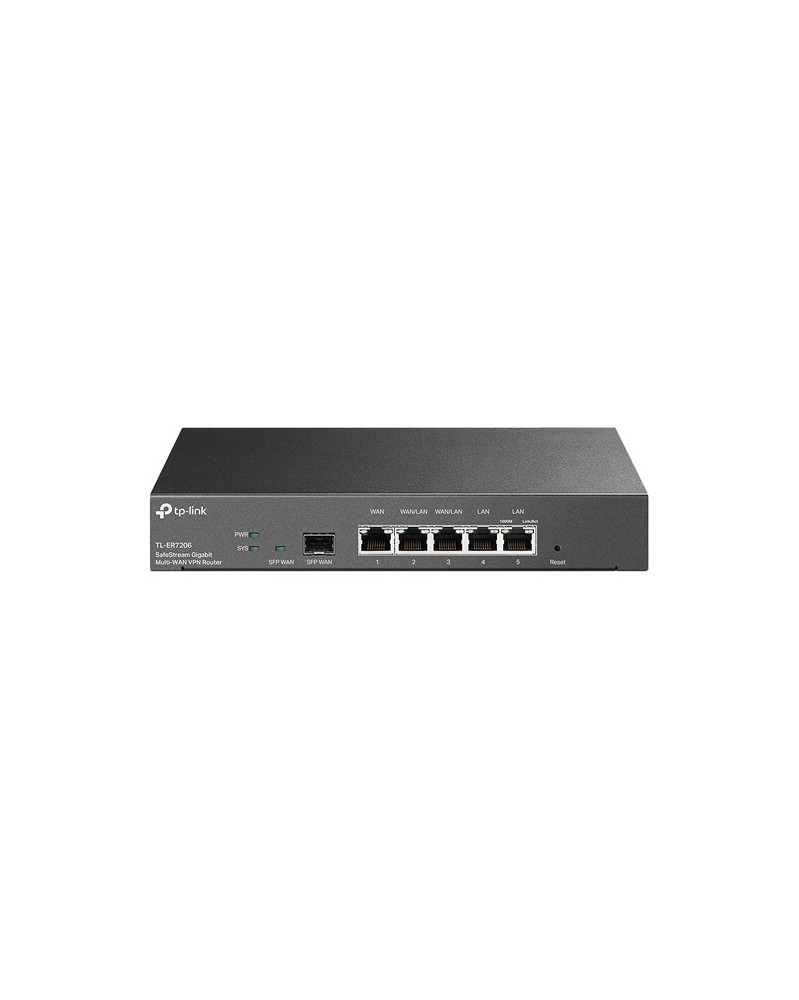

ER7206 Omada Gigabit VPN Router
Flexible Connections
The ER7206 VPN router features six Gigabit Ethernet ports comprised of one fixed SFP WAN port, one RJ45 WAN port, two RJ45 WAN / LAN ports, and two dedicated RJ45 LAN ports.
Optimized Bandwidth
The multi-WAN Load Balancing function distributes data streams according to the bandwidth proportion of every WAN port, raising the utilization rate of multi-line broadband.
Centralized Cloud-Based Management
Manage your entire network from different sites from anywhere, anytime via the web interface or Omada app.
Security Features
Integrated SPI Firewall
VLAN support
DoS defense
IP/MAC/URL filtering
IP-MAC binding
One-click ALG activation
VPN Features
IPSec VPN
100 IPSec VPN tunnels
LAN-to-LAN, Client-to-LAN
Main, Aggressive Negotiation Mode
DES, 3DES, AES-128, AES-192, AES-256 encryption algorithm
IKEv1/v2
MD5, SHA1 Authentication Algorithm
NAT Traversal (NAT-T)
Dead Peer Detection (DPD)
Perfect Forward Secrecy (PFS)
Wi-Fi None
Inputs/Outputs 1 x 10/100/1000 Mb/s Gigabit Ethernet RJ45 (WAN)
1 x 10/100/1000 Mb/s Gigabit SFP (WAN)
2 x 10/100/1000 Mb/s Gigabit Ethernet RJ45 (WAN/LAN)
2 x 10/100/1000 Mb/s Gigabit Ethernet RJ45 (Console)
Protocols
Supported Protocols MAC Filtering
SNMPv1
SNMPv2c
SNMPv3
Security
Security Features DoS Attack Prevention
Standards
Supported IEEE Standards 802.1q, 802.3, 802.3ab, 802.3q, 802.3u, 802.3x, 802.3z
Performance
Throughput 291.6 Mb/s IPsec VPN
Concurrent Sessions 150,000
Supported VPN Tunnels 100 IPsec
50 PPTP
50 L2TP
50 SSL
Computer
Flash Memory 512 MB
Memory 128 MB
Electrical
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Supply Type Internal
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
General
Cooling System Passive
Indicator Lights Link, Link/Activity/Speed, Power, System, WAN
Dimensions 8.9 x 5.2 x 1.4" / 226 x 131 x 35 mm
Packaging Info
Package Weight 2.94 lb
Box Dimensions (LxWxH) 12 x 8.9 x 2.8"
