Key Features

Gigabit Ethernet | 10G SFP+ WAN Ports

Gigabit Ethernet | 10G SFP+ LAN Ports

WAN Failover Support

DPI, IPS/IDS & Layered Firewall

1.3" Touchscreen

Rackmount Design

Cloud Key Plus Compatible

Works with UniFi Network Application

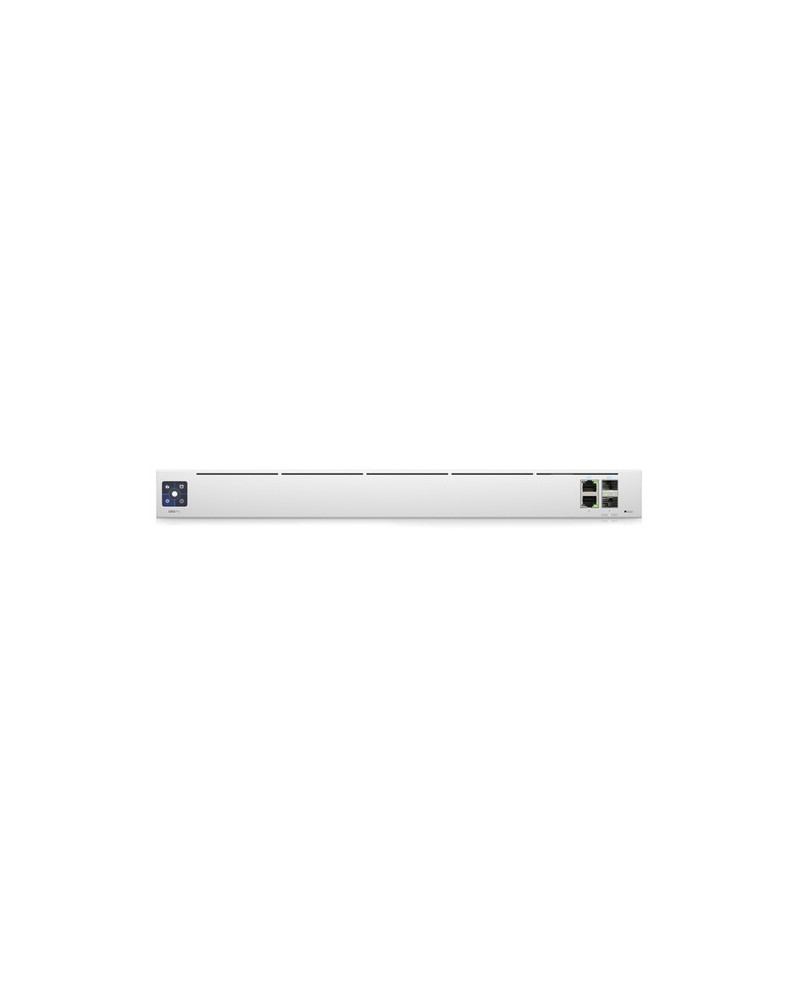

The UniFi Next-Generation Gateway Pro (UXG Pro) from Ubiquiti Networks is a powerful security gateway that delivers a versatile networking interface and enterprise-class threat management functionality to medium to large-sized networks. The UXG Pro is equipped with two WAN ports, a Gigabit Ethernet RJ45, and a 10G SFP+, that provide failover support, as well as two LAN ports (GbE RJ45 and 10G SFP+) to provide the high-speed connectivity needed to support the most bandwidth-intensive applications. It also excels as a complete network security solution, offering a full suite of threat mitigation features, including deep packet inspection (DPI), intrusion detection and prevention systems (IDS/IPS), and layered firewall configuration. The UXG Pro can be paired with a separately purchased Cloud Key Plus to create a highly powerful and secure deployment that can be fully managed with the UniFi Network application.

UniFi Network Application

Centrally manage multiple networks from an intuitive interface

Enjoy real-time device insights and deep configuration options

Upgrade device firmware remotely

Manage network users and guests

Personalize the design, architecture, and privacy of guest hotspots

Set up devices quickly and manage them on the go with a powerful mobile app

Wi-Fi None

Inputs/Outputs 1 x 10/100/1000 Mb/s Gigabit Ethernet RJ45

1 x 10Gb SFP+

1 x 10/100/1000 Mb/s Gigabit Ethernet RJ45 (WAN)

1 x 10Gb SFP+ (WAN)

1 x Ethernet RJ45 (Console)

Performance

Dual WAN Support Failover

Computer

CPU to 1.7 GHz Cortex A57 Quad-Core

Memory 2 GB DDR4

Electrical

Power Draw 30.00 W (Max)

AC Input Power 125 to 240 VAC, 50 / 60 Hz at 1.7 to 2.7 A

Power Supply Type Internal

Environmental

Operating Temperature 22 to 72°F / -10 to 40°C

Operating Humidity 5 to 95%

General

Certifications CE, FCC, IC

*as per Manufacturer

Cooling System Passive

Material of Construction Aluminum, Steel

Indicator Lights Activity, Power

Rack Form Factor 1 RU

Dimensions 17.4 x 11.2 x 1.7" / 442.4 x 285.6 x 43.7 mm

Weight 7.54 lb / 3.42 kg

Packaging Info

Package Weight 10.48 lb

Box Dimensions (LxWxH) 20.4 x 16.8 x 4.8"
