Key Features
6 x Gigabit Ethernet Ports
5 x Gigabit Ethernet Ports Support PoE
1 x RJ-45 Serial Port
1 x SFP Port
Quad-Core 1 GHz, MIPS64 CPU
1 GB DDR3 RAM
Speed / Link / Activity LEDs
Built-in Reset Button

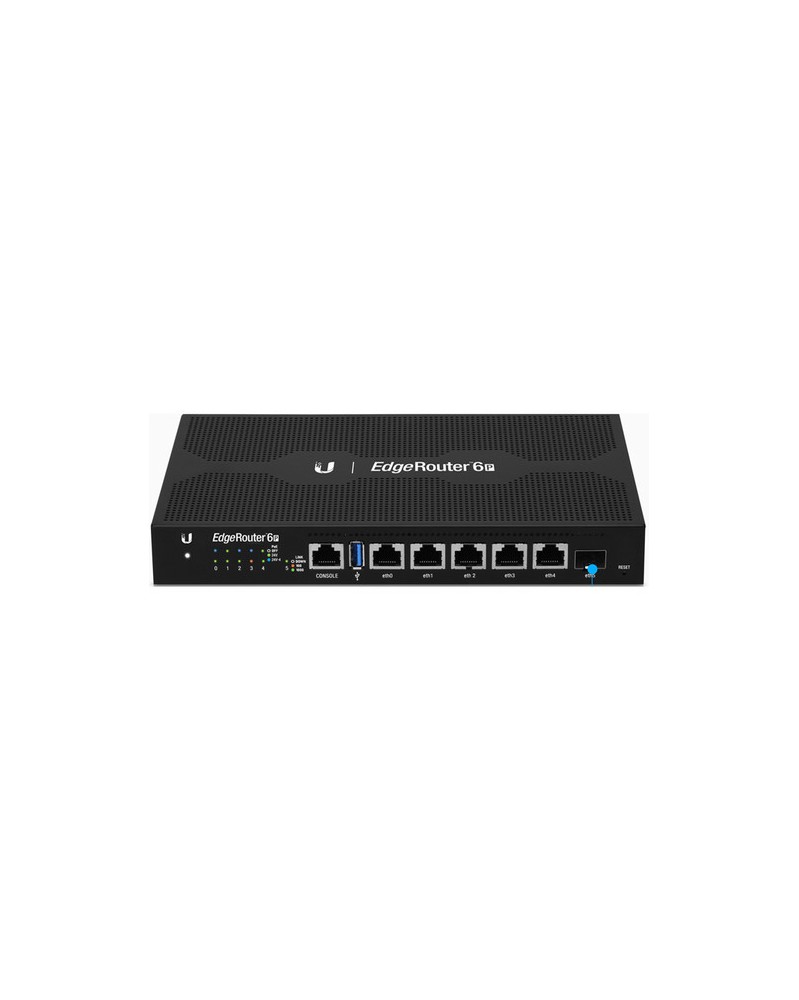

The 6-port ER-6P PoE EdgeRouter with EdgeMAX Technology from Ubiquiti Networks is capable of supporting numerous high-bandwidth clients in an enterprise environment with the ability to support up to 3.4 million packets per second along with a line rate of 4 Gb/s. In addition to supporting multiple high-bandwidth clients, this EdgeRouter also comes equipped with 5 Gigabit Ethernet ports supporting up to 24W of PoE power.
Managing this switch and the network it resides on is simple, thanks to a variety of management tools including DHCP server capabilities, monitoring tools such as ping, trace, discover, and the ability to set up and configure operator and admin user accounts. To secure the network, Ubiquiti has implemented a variety of features including advanced firewall policies and groups as well as NAT rules for specific packet addressing.
Installation of this EdgeRouter is simple, as it comes compatible with a standard rackmount design. Once installed, Ubiquiti offers intuitive management features including an easy-to-use interface complete with graphical menus that can be accessed through a web browser. Additional tools include support of OSPF, RIP, and BGP routing protocols, firewall policies, DHCP services, Quality of Service (QoS) support, and much more.
Advanced Routing Technology for the Masses
The Ubiquiti Networks EdgeRouter 4 combines carrier-class reliability with enterprise-level features in a compact and affordable unit. The EdgeRouter 4 offers Gigabit Ethernet ports and an SFP port for a fiber link. The EdgeRouter 4 is also capable of routing up to 3.4 million packets per second and has a line rate of 4 Gb/s.
Powered by a proprietary and intuitive graphical interface, EdgeOS, EdgeRouters can easily be configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.
Even greater convenience and flexibility is provided by the UNMS app, which makes it possible to manage the EdgeRouter remotely from your mobile device.
Manage Your Network
DHCP Server
Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices.
Monitoring Tools
Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.
Secure Your Network
Firewall Policies
Organize the rules you apply in the order you specify.
Firewall Groups
Apply the policies to groups filtered by IP address, network address, or port number.
NAT Rules
The EdgeRouter changes packet addressing based on your customized source and destination NAT rules.
Direct Traffic Flow
Interfaces
Each port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces for network segmentation.
Routing
Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.
Software
Intuitive User Interface
The EdgeRouter provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed, and status. The Dashboard screen displays detailed statistics: IP information, MTU, transmit and receive speeds, and status for each physical and virtual interface.
Powerful Features
EdgeOS is a sophisticated operating system loaded with robust features, including:
• VLAN interfaces for network segmentation
• Static routes and support of routing protocols: OSPF, RIP, BGP, and MPLS
• Firewall policies and NAT rules
• Application identification with Deep Packet Inspection (DPI)
• DHCP services
• Quality of Service (QoS)
• Network administration and monitoring tools
• Administrator and operator accounts
• Comprehensive IPv6 support
Configuration by CLI
The CLI provides quick and flexible configuration by command line and features the following:
• For power users, configuration and monitoring of all advanced features
• Direct access to standard Linux tools and shell commands
• CLI access through the following:
- Serial console port
- SSH
- Telnet
- Graphical user interface
Management Flexibility
Ubiquiti Network Management System
The EdgeRouter 4 is supported and managed by the Ubiquiti Network Management System. UNMS is a comprehensive management controller featuring a graphic UI that is easy to navigate. You can use a single control plane to manage registered EdgeMAX devices across multiple networks and sites.
Mobile App
The UNMS app allows you to manage the EdgeRouter using your mobile device. The app can be downloaded from the App Store (iOS) or Google Play (Android). Once the UNMS app is installed on your mobile device, simply connect to a wireless network that has access to the EdgeRouter, discover the EdgeRouter, and log into its configuration interface. You can display and configure various settings, such as interface information, throughput per port, system settings, and more.
Wi-Fi None
Inputs/Outputs 1 x Ethernet RJ45 (Console)
5 x 10/100/1000 Mb/s Gigabit Ethernet RJ45 PoE
1 x 10/100/1000 Mb/s Gigabit SFP
Protocols
Queuing None
Jumbo Frames Support None
Security
Security Features None
Access Control List None
Performance
Forwarding Rate 3.4 Mpps
Packet Buffer 64 B
Dual WAN Support None
Encryption None
Computer
Flash Memory 4 GB
CPU to 1 GHz Quad-Core
Memory 1 GB DDR3
Electrical
Power Draw 60.00 W
DC Input Power VDC at 2.5 A
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Port Power 24 V at 1 A (24 W)
Power Supply Type External
Environmental
Operating Temperature 14 to 122°F / -10 to 50°C
Operating Humidity 10 to 90%
Certifications CE, FCC, IC
*as per Manufacturer
General
Cooling System None
Material of Construction Metal
Indicator Lights Link/Activity, Link/Activity/Speed
Dimensions 9.02 x 5.37 x 1.22" / 229 x 136.5 x 31.1 mm
Weight 1.61 lb / 730 g
Packaging Info
Package Weight 3.39 lb
Box Dimensions (LxWxH) 11.35 x 10.2 x 2.7"
