Key Features
· Includes TPL-421E and TPL-430AP
· IEEE 1901, 802.3/3u/3x/ Standards
· 802.11ac Wi-Fi Standard
· Dual Band 2.4 GHz & 5 GHz Frequencies
· 3 x Gigabit LAN Ports
· Dedicated Status LED Indicators
· Up to 984' Powerline Networking Range
· 128-bit AES Encryption
TRENDnet Powerline 1200 Overview

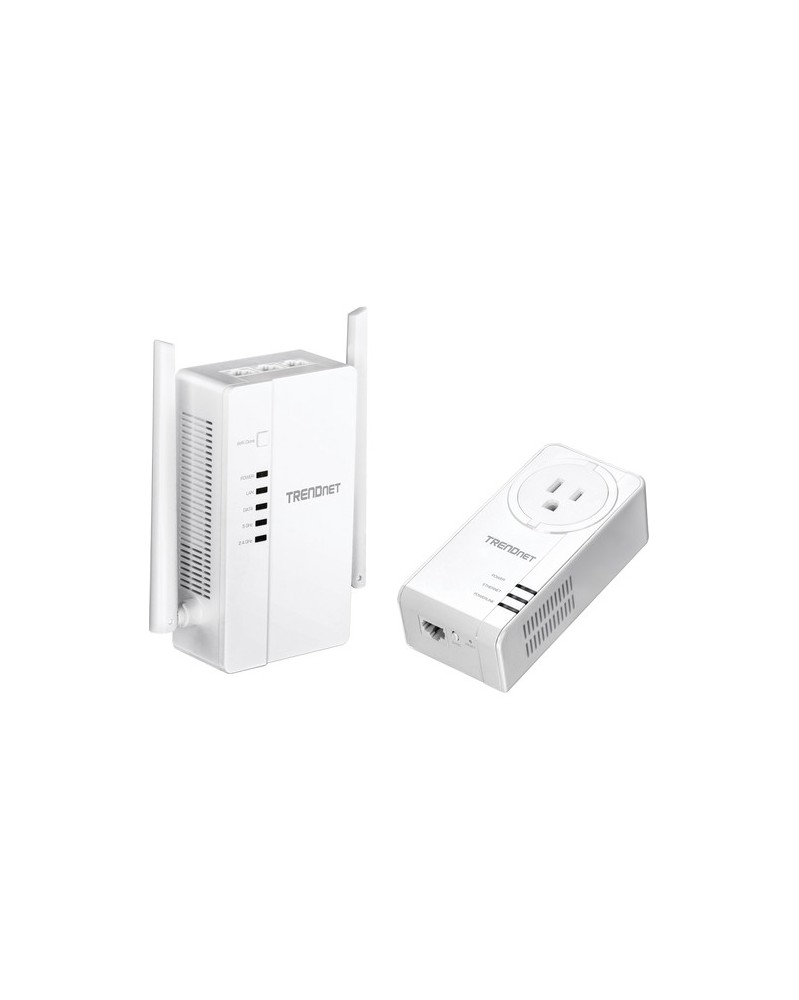

With the TPL-430APK Wi-Fi Everywhere Powerline 1200 AV2 Wireless Kit from TRENDnet you have everything you need to expand your network to areas previously outside the reach of your existing Wi-Fi network.
The included TPL-421E Powerline 1200 AV2 Adapter comes equipped with a built-in outlet allowing you to plug electrical devices into the outlet occupied by the adapter. With auto-connect technology this adapter is virtually plug-and-play and it comes pre-encrypted eliminating the need to set security protocols. Simply attach the adapter to your network via the Gigabit Ethernet port and plug it in to a nearby electrical outlet to take advantage of data transfer rates of up to 1200 Mb/s at distances up to 980'.
Plug in the TPL-430AP Wi-Fi Everywhere Powerline 1200 AV2 Access Point on the same electrical circuit to take advantage of enhanced powerline networking capabilities including data transfer rates of up to 1200 Mb/s. This easy-to-install access point features auto-connect functionality making it easy to configure the TPL-430AP to work with an existing powerline network setup.
Once configured, this access point supports 802.11ac Wi-Fi and operates on both the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 1200 Mb/s. In addition to enhanced wireless transfer rates, Wi-Fi clients can also take advantage of both MIMO and beamforming technologies, ensuring wireless connections are both stable and reliable. Along with wireless connectivity, this access point comes equipped with three Gigabit Ethernet ports for a reliable wired connection.
· Powerline 1200 networking over existing electrical lines
· Powerline kit includes TPL-421E and TPL-430AP
· TPL-430AP features a dual-band wireless AC1200 access point with three gigabit ports
· Enhanced Powerline performance and range from MIMO with Beamforming technology
· Easy installation - TRENDnet adapters auto-connect out of the box
· Pre-encrypted for your convenience
· Powerline range of up to 984' over existing electrical lines
· Wi-Fi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration
·
TPL-430AP
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n (up to 300Mb/s)
IEEE 802.11ac (up to 866Mb/s)
IEEE 1901
Device Interface
3 x Gigabit LAN ports
Wi-Fi Clone button
Reset button
Sync button
Power switch
LED indicators
Power Plug: North America Type B (NEMA 5-15)
Frequency Band
2 - 67 MHz
Modulation
OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier
CSMA/CA
Networking Distance
Powerline: Up to 980' / 300 m linear distance over electrical power lines
Encryption
Wireless: WPA2-PSK
Powerline: 128-bit AES (Advanced Encryption Standard)
Nodes
Up to 8 (max.)
Overlapping Powerline Networks
Up to 4 (per electrical system)
Antenna Gain
2.4 GHz: 2 x 3.31 dBi
5 GHz: 2 x 4.51 dBi
Wireless Output Power/Receiving Sensitivity
802.11a: 16 dBm (typical) / -65 dBm (typical) @ 54 Mb/s
802.11b: 20 dBm (typical) / -88 dBm (typical) @ 11 Mb/s
802.11g: 15 dBm (typical) / -76 dBm (typical) @ 54 Mb/s
802.11n (2.4 GHz): 13 dBm (typical) / -73 dBm (typical) @ 300 Mb/s
802.11n (5 GHz): 16 dBm (typical) / -70 dBm (typical) @ 300 Mb/s
802.11ac (5 GHz): 15 dBm (typical) / -60 dBm (typical) @ 866 Mb/s
Power
Input: 100 to 240 VAC, 50 - 60 Hz, 0.2 A
Active Mode Consumption: 12 W (max.)
Temperature & Humidity
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
Max. 90% non-condensing
Certifications
CE, FCC, IC, UL
Dimensions
10.04 x 5.11 x 2.95" / 255 x 130 x 75 mm
Weight
11.7 oz / 332 g
· TPL-421E
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 1901
Device Interfaces
Ethernet port
Sync / reset button
Status LEDs
Power Plug: North America Type B (NEMA 5-15)
Frequency Bands
2 - 68 MHz
Data PHY Rate
Up to 1200 Mb/s
Networking Distance
Up to 980' / 300 m linear distance over electrical power lines
Security
128-Bit AES (Advanced Encryption Standard)
Nodes
Up to 8 (max.)
Overlapping Powerline Networks
Up to 4 (per electrical system)
Current
110 VAC, 20 A (max.)
220 VAC, 16 A (max.)
Power
Input: 100 to 240 VAC, 50/60 Hz
Consumption
Active Mode: 2.7 W (max.)
Standby Mode: 0.34 W (max.)
Temperature & Humidity
Operating Temperature
32 to 104°F / 0 to 40°C
Operating Humidity
Max. 90% non-condensing
Certifications
CE, FCC, UL
Dimensions
2.4 x 4.8 x 2.6" / 61 x 123 x 65 mm
Weight
3.7 oz / 104 g
· Packaging Info
Package Weight
2.43 lb
Box Dimensions (LxWxH)
17 x 9.6 x 4"
