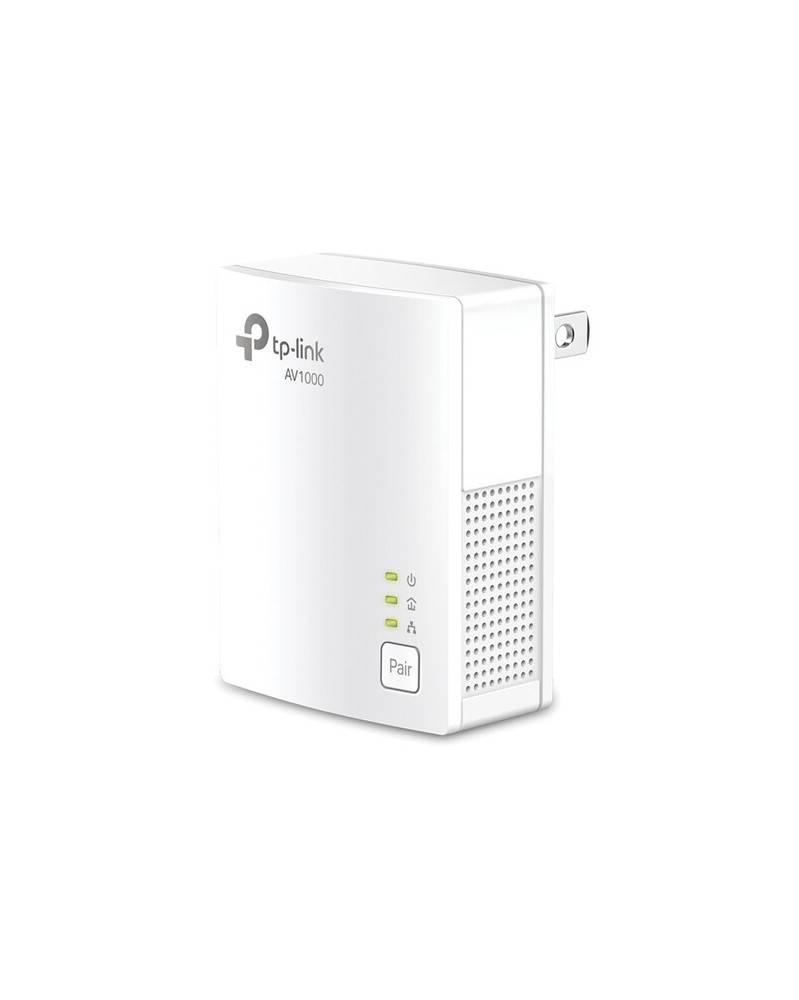

TP-Link AV1000 Powerline Ethernet Adapter Add-On Unit

Key Features

·        1 x AV1000 Powerline Adapter Module

·        1 x Gigabit Ethernet Port

·        HomePlug AV2 Compliant

·        Up to 984.3' Range

·        IEEE 1901, 802.3/3u/3ab Standards

·        128-bit AES Encryption

·        Dedicated Pairing Button

·        Power Saving Mode

·        Works with Windows, Mac, and Linux

TP-Link TL-PA7017 Overview

Quickly expand your wired Gigabit network to reach across your home by including the AV1000 Powerline Ethernet Adapter Add-On Unit from TP-Link in your existing powerline Ethernet configuration. This HomePlug AV2 compliant module plugs into available two-pronged US wall outlets to integrate into an existing AV1000 Powerline Ethernet system using TL-PA7017 adapters. With it, you can reliably transfer data across up to 984.3' using your home's electrical wiring. Connect it to compatible devices through its Gigabit Ethernet port, then press the pairing buttons on each of the adapters to link them. Your data connection is secured with 128-bit AES encryption. The AV1000 Powerline Adapter supports the IEEE 1901, 802.3/3u/3ab standards and is designed to work with Windows, Mac, and Linux computers.

Power Saving Mode

The AV1000 powerline modules are designed to automatically switch from its regular "working" mode to "Power Saving" mode when they're not in use, which can reduce energy consumption by up to 85%.

TP-Link TL-PA7017 Specs

Maximum Data Rate

1 Gb/s

Number of Ethernet Ports

1

Ethernet Standards

IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

Ethernet Speed

10/100/1000 Mb/s

Powerline Technology

HomePlug AV, HomePlug AV2

Modulation Technology

OFDM

Maximum Networking Distance

984.3' / 300 m

Plug Type

US (2-Pin)

AC Pass-Through

No

Wi-Fi

None

Encryption

128-Bit AES

Active Power Consumption

2.3 W

Power-Saving Mode

Yes

Standby Power Consumption

0.5 W

OS Compatibility

Linux

Windows

macOS

*As of May, 2021: Check with manufacturer for the most up-to-date compatibility

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

10 to 90%

Storage Temperature

-40 to 158°F / -40 to 70°C

Storage Humidity

5 to 90%

Certifications

FCC, RoHS

*as per Manufacturer

Dimensions (W x H x D)

2 x 2.6 x 1.1" / 52 x 65 x 28.5 mm

Packaging Info

Package Weight

0.57 lb

Box Dimensions (LxWxH)

7.5 x 5.3 x 3.1"
