·        48 x Gigabit Ethernet Ports

·        40 x PoE+ Ports | 8 x PoE++ Ports

·        4 x 10 Gb/s SFP+ Ports

·        176 Gb/s Switching Capacity

·        130.94 Mpps Forwarding Capacity

·        Rack-Mountable Design

·        1.3" Touchscreen Display

·        Passive Cooling

·        UniFi Controller Compatible

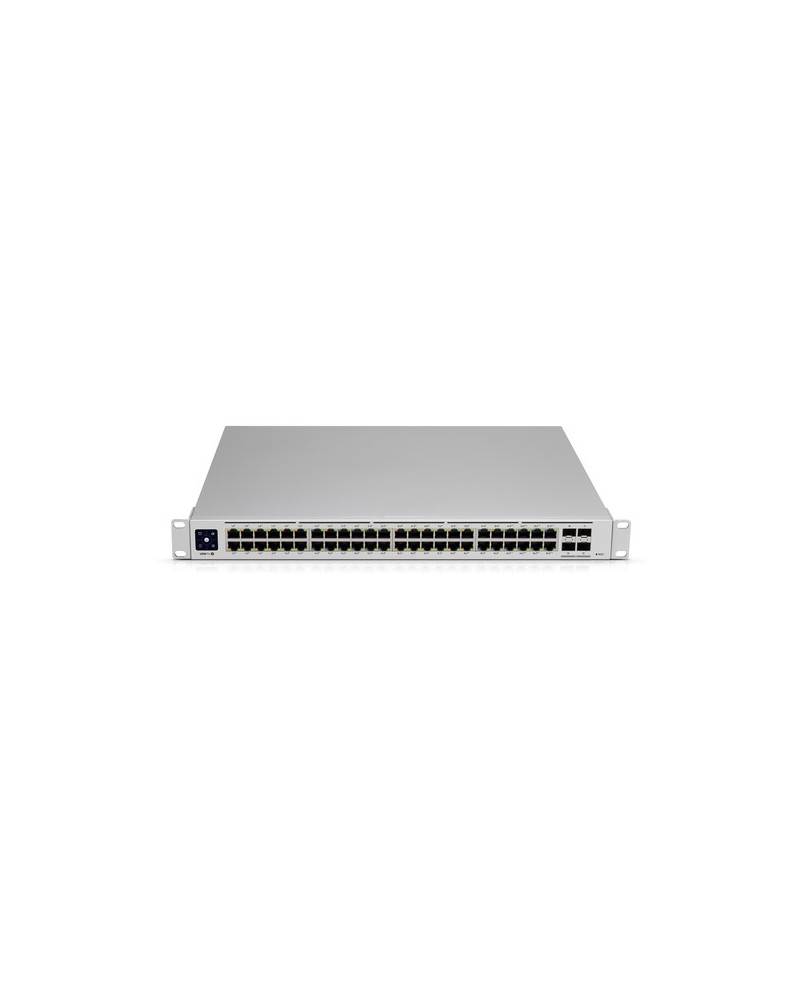

Expand your business's network with the fully manageable second-generation UniFi Pro PoE 48-Port Gigabit Managed PoE Network Switch with SFP+ from Ubiquiti. Designed with Layer 3 protocol support, the passively cooled 48-port Gigabit switch features a total power budget of 600W across 40 32W PoE connectors and eight 64W PoE++ ports for power-intensive devices such as high-resolution network security cameras. Each port delivers 88 Gb/s non-blocking throughput with a 176 Gb/s switching capacity and a 130.94 Mpps forwarding rate. Four 10 Gb/s SFP+ ports are available for additional network expansion using compatible devices. Administrators may monitor and manage the switch with the 1.3" touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.

Switching Performance

The second-generation UniFi switch offers a 130.94 Mpps forwarding capacity to simultaneously process traffic on all ports without packet loss. The UniFi PoE Pro Switch has a non-blocking throughput of 88 Gb/s with a 176 Gb/s switching capacity.

Layer 3

The UniFi Pro PoE Switch features Layer 3 protocol capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.

SFP+ Fiber Connectivity

Connect high-speed network storage or set up a long-distance uplink using the 10 Gb/s SFP+ ports.

Redundant Power

The UniFi Pro PoE Switch supports has an external DC power interface, which works with a separate power adapter as a power backup if the internal PSU fails.

UniFi Controller

Network Management

The UniFi Network Controller can provision UniFi devices, map networks, manage system traffic, and monitor network statistics from one interface.

Multi-Site Management

You may use a single instance of the UniFi Controller running in the cloud from a centralized interface to manage multiple UniFi sites. Each site is logically separated with its own network monitoring, configuration, maps, statistics, and administrator accounts.

Switch Configuration

Access and configure any managed UniFi Switch using the UniFi Controller. Its features include:

·        Operation mode (switching, mirroring, or aggregate) per port

·        Network/VLAN configuration

·        Jumbo frame and flow control services

·        Network settings

·        Storm control setting per port

·        Spanning tree configuration

·        802.1X control and RADIUS VLAN

·        Debug terminal option for command-line interface

Switch Port Status

View the status information for each port, including:

·        Connection speed and duplex mode

·        TX/RX data rates

·        Network/VLAN setting

Detailed Analytics

Ubiquiti's Deep Packet Inspection (DPI) engine tracks which applications and IP addresses are using the most bandwidth. Additionally, the UniFi Network Controller provides configurable reporting and analytics to efficiently manage user populations and speed up troubleshooting.

Ubiquiti Networks USW-PRO-48-POE Specs

Interfaces

Inputs/Outputs

40 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+

8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+ (Type 2)

4 x 10Gb SFP+ (Uplink)

Protocols

Layer Services Supported

Layer 2 Support, Layer 3 Support

Supported Protocols

Auto-MDIX/MDI

Port Mirroring

Transmission Method

Store-and-Forward

Standards

Supported IEEE Standards

802.3af, 802.3at, 802.3bt

Performance

Forwarding Rate

65.47 Mpps

Switching Bandwidth

44 Gb/s (Non-Blocking)

Computer

OS Compatibility

macOS 10 or Later

Windows 7 or Later

Linux

*As of March, 2020: Check with manufacturer for the most up-to-date compatibility

Electrical

Power Draw

60.00 W (Max)

DC Input Power

11.5 to 52 VDC at 11.54 A

AC Input Power

100 to 240 VAC, 50 / 60 Hz

PoE Power Budget

600 W

PoE per Port

32 to 64 W

Power Supply Type

Internal

Environmental

Operating Temperature

27 to 72°F / -5 to 40°C

Operating Humidity

10 to 90%

Certifications

CE, FCC, IC

*as per Manufacturer

General

Cooling System

Passive

Indicator Lights

Link/Activity, Link/Activity/Speed, PoE, System

Rack Form Factor

1 RU

Dimensions

17.42 x 11.24 x 1.72" / 442.4 x 285.4 x 43.7 mm

Weight

9.48 lb / 4.3 kg

Packaging Info

Package Weight

16.295 lb

Box Dimensions (LxWxH)

20.3 x 20.1 x 4.8"
