Key Features

·        5 x Gigabit Ethernet Ports

·        4 x PoE+ Compliant Ports

·        10 Gb/s Switching Capacity

·        1.448 Mpps Forwarding Rate

·        128KB Buffer Memory

·        9216 bytes Jumbo Frame

·        2K MAC Address Table Size

·        802.3az Energy Efficient Ethernet

·        Desktop Design

·        Auto Power Down & Short Cable Detection

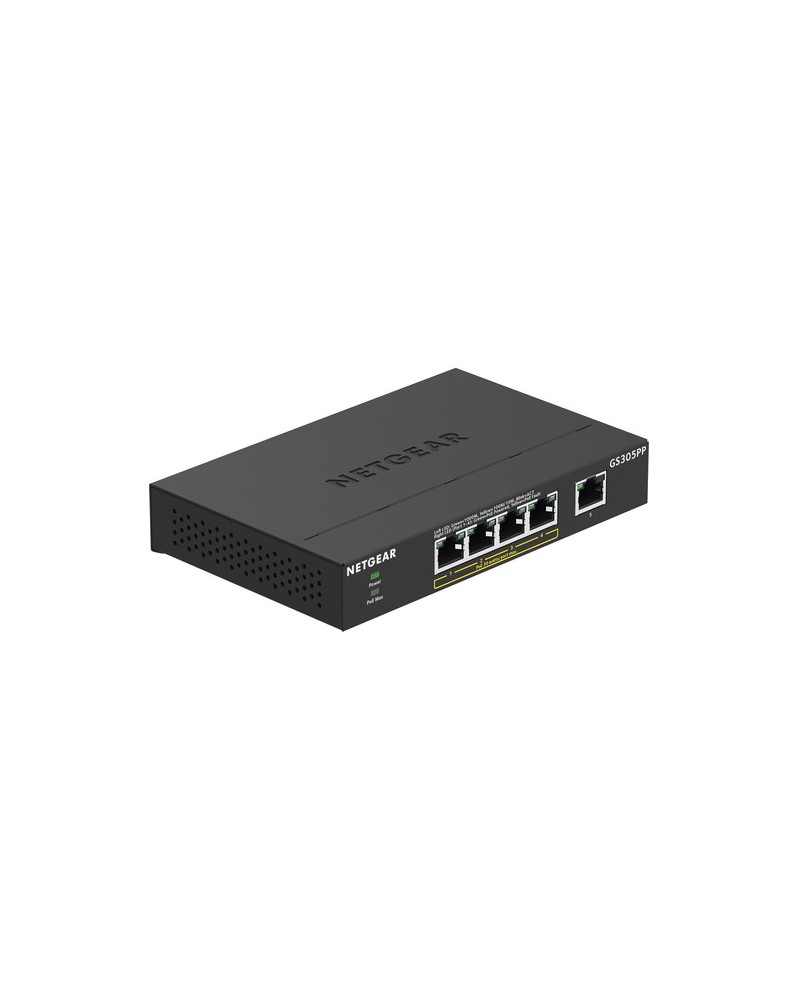

Netgear GS305PP-100NAS Overview

Quickly and easily expand your network to reach multiple Ethernet-enabled devices using the GS305PP 5-Port Gigabit PoE+ Compliant Unmanaged Switch from NETGEAR. This switch features five Gigabit Ethernet ports, four of which are PoE+ compliant with a total power budget of 83W, offering power to devices such as IP cameras, access points, and other components. Setup is simple, as the GS305PP features plug-and-play configuration, and with its durable metal housing, the switch can be installed virtually anywhere in your home or office.

Once installed, users benefit from a 10 Gb/s switching capacity, a 128KB memory buffer, 9216 byte jumbo frames, a 1.448 Mpps forwarding rate, and a 2K MAC address table size to ensure this switch operates smoothly, even under heavy use. In addition to enhanced performance, this NETGEAR switch is designed for efficiency, as it supports the 802.3az Energy Efficient Ethernet standard and short cable detection.

Auto-MDI/MDIX eliminates the need for crossover cables

LED indicators for ease of use

Energy-efficient technology for power savings

Fanless design for silent operation

Auto-negotiation for automatic connection at the highest common speed between switch and an end device

Non-blocking switching architecture for maximum throughput at wire speed

802.1p QoS for traffic/frame prioritization

Plug-and-play; no setup required

Durable and rugged metal case

Ideal for small office and home networks

Standards-based technology ensures interoperability with any standards-based devices in the existing network

Power up to 4 PoE+ capable devices

Up to 30W per port, up to 83W total power budget

802.3af Power over Ethernet (PoE) for IP cameras, VoIP/internet-based phones, wireless access points, and more

Netgear GS305PP-100NAS Specs

Interfaces

Inputs/Outputs

4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+

1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)

Protocols

Supported Protocols

Auto-MDIX/MDI

Queuing

Weighted Round Robin (WRR)

Jumbo Frames Support

9216 Bytes

MAC Address Table Size

2K

Standards

Supported IEEE Standards

802.1p, 802.3, 802.3ab, 802.3az, 802.3i, 802.3u, 802.3x

Performance

Latency

2.4 µs

Forwarding Rate

1.44 Mpps

Switching Bandwidth

10 Gb/s (Non-Blocking)

Packet Buffer

128 kB

Electrical

Power Draw

88.89 W (Max)

1.55 W (Standby)

DC Input Power

54 VDC at 1.66 A

PoE Power Budget

83 W

PoE per Port

30 W

Power Supply Type

Internal

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

90%

Storage Temperature

-4 to 158°F / -20 to 70°C

Storage Humidity

95%

Operating Altitude

10,000' / 3048 m

General

Cooling System

Passive

Mean Time Between Failures (MTBF)

3,222,482 Hours

Material of Construction

Metal

Indicator Lights

Link/Activity/Speed, PoE, Power

Dimensions

6.22 x 3.98 x 1.14" / 158 x 101 x 29 mm

Weight

0.9 lb / 0.41 kg

Packaging Info

Package Weight

2.65 lb

Box Dimensions (LxWxH)

10.6 x 8.5 x 2.9"
