Key Features
Wi-Fi 6 (802.11ax)
Up to 5373 Mb/s Total Throughput
2.4 GHz / 5 GHz (Dual-Band)
1 x Gigabit Ethernet PoE+ Port
Supports over 300 Concurrent Clients
Guest Traffic Isolation
Includes Wall & Ceiling Mounting Kit
IP54 Rated
Works with UniFi Network Application

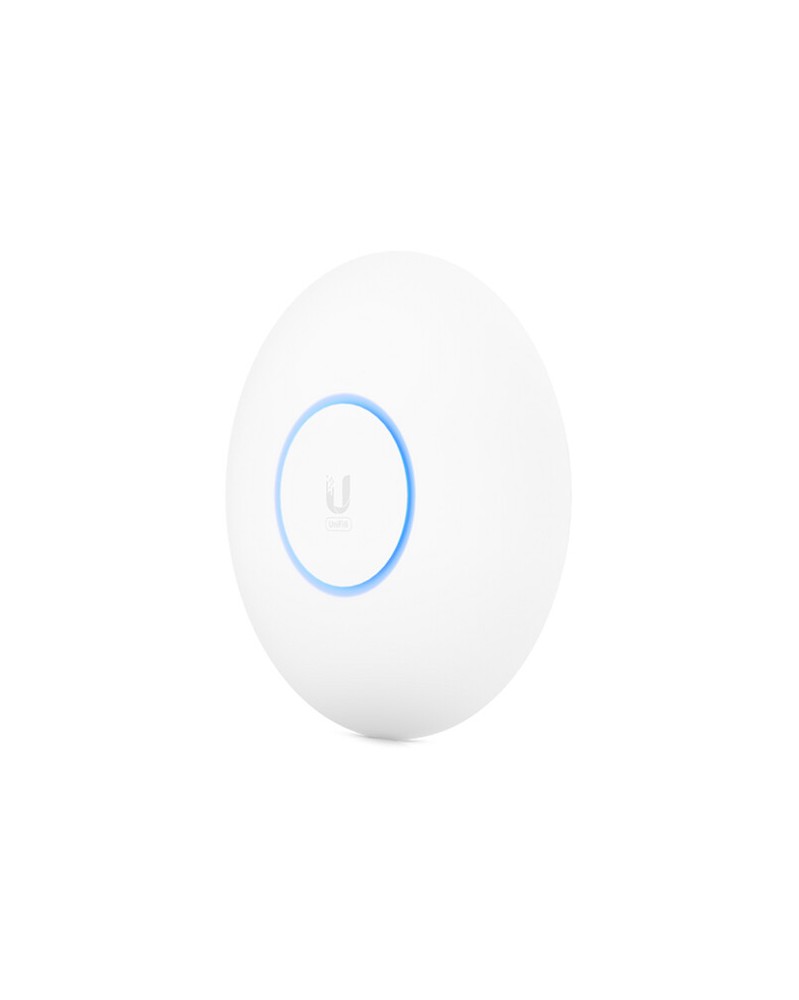

Quickly expand your business's network with strong and reliable wireless coverage by connecting the WiFi 6 Pro Dual-Band Access Point from Ubiquiti Networks to your compatible router or network switch. Supporting over 300 concurrent connections with 4x4 MIMO with 160 MHz channels, this 802.11ax dual-band access point can transfer up to 5373 Mb/s over the 2.4 GHz and 5 GHz frequencies for smooth video streaming, file transfer, and internet browsing. You can also isolate guest traffic to ensure optimal security and speed. Its power-over-Ethernet (PoE) compliant Gigabit Ethernet port allows you to transfer both data and power over a single cable with compatible devices. Use the UniFi Network application to set up, configure, and manage your network connections. This access point is IP54 rated to withstand dust and water. A wall and ceiling mounting kit is included.
UniFi Network Application Features
Manage networks from a single interface
Intuitive configuration options and robust device control and monitoring
Remote device firmware updates
Manage network users and guests
Personalize the design, architecture, and privacy of guest hotspots
Wi-Fi Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
MU-MIMO Support 4 x 4
Antenna Gain 4 to 6 dBi
Transmit Power 22 to 26 dBm
Antenna Placement Internal
Bluetooth Yes
Throughput 5373 Mb/s Total
5 GHz: 4800 Mb/s
2.4 GHz: 573 Mb/s
Interface
Inputs/Outputs 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
USB Sharing Support No
Security
Guest Network Support Yes
Wireless Security WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-Enterprise, WPA2-PSK, WPA3, WPA3-Enterprise, WPA3-PSK
Lock Slot No
Management
Operation Modes Access Point
Supported Clients 300
Mobile App Compatible No
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Hardware
Storage Capacity None
Media Card Reader Yes
Supported IEEE Standards 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.1q, 802.3af
Electrical
DC Input Power 57 VDC
Power Consumption 13 W
Environmental
Operating Temperature 2 to 92°F / -30 to 60°C
Operating Humidity 5 to 95%
General
Mount Options Wall, Ceiling
Dimensions 7.8 x 7.8 x 1.4" / 197 x 197 x 35 mm
Weight 1 lb / 460 g
Packaging Info
Package Weight 3.015 lb
Box Dimensions (LxWxH) 9.6 x 9.2 x 3"
