Key Features
Wi-Fi 6 (802.11ax)
Up to 3000 Mb/s Throughput
2.4 GHz / 5 GHz (Dual-Band)
1 x PoE-Compliant Gigabit Ethernet Port
4 x 4 MU-MIMO and OFDMA Technologies
IP54 Rated for Semi-Outdoor Use
Wall and Ceiling Mountable

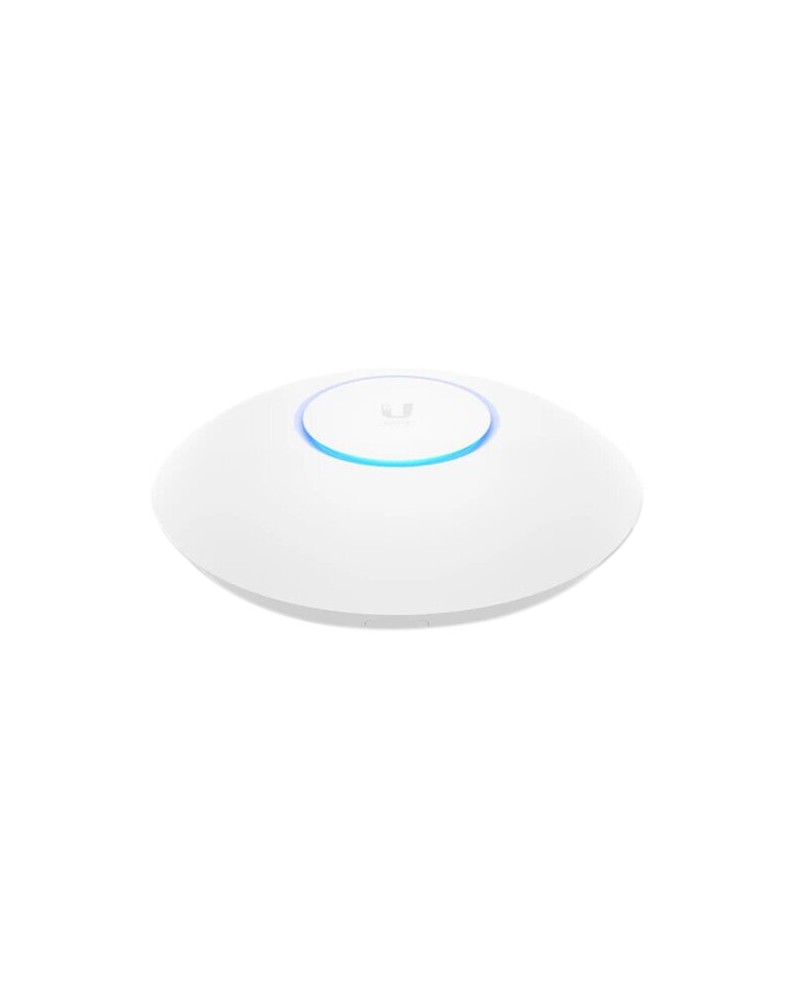

Strengthen your business with fast and reliable wireless network connectivity with the U6-LR UniFi 6 AX3000 Long-Range Access Point from Ubiquiti Networks. This powerful 802.11ax Wi-Fi outdoor access point is designed to deliver up to 3000 Mb/s wireless speeds over the 2.4 GHz and 5 GHz frequencies, providing wide coverage for enterprise environments. The U6-LR supports over 300 clients using 4 x 4 MU-MIMO and OFDMA technologies to help ensure strong and efficient connections to devices. This access point is IP54 rated for semi-outdoor environments and includes both wall and ceiling mounting kits so that it can blend seamlessly with most environments. It is powered by connecting it to a PoE-compliant switch or through a separately purchased adapter.
Fast Wi-Fi
The UniFi 6 Long-Range Access Point supports 802.11ax Wi-Fi, delivering up to 2.4 Gb/s speeds on the 5 GHz frequency and 600 Mb/s through the 2.4 GHz signal with four-stream MU-MIMO and OFDMA technologies helping to ensure fast and reliable connections to devices.
Flexible Mounting
This access point is IP54 rated for indoor and semi-outdoor environments and includes wall and ceiling mounting kits.
PoE Powered
The U6-LR is powered with 802.3at PoE when connected to a compatible switch or a separately purchased power adapter.
UniFi Network Controller
Single interface network management.
Intuitive and comprehensive device configuration, control, and monitoring.
Remote firmware upgrading.
Manage network users and guests.
Personalize the design, architecture, and privacy of guest hotspots.
Wireless
Wi-Fi Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
Number of Antennas 1
MU-MIMO Support 4 x 4
Antenna Gain 4 to 5.5 dBi
Transmit Power 26 dBm
Antenna Placement Internal
Bluetooth 5.0
Throughput 3000 Mb/s Total
5 GHz: 2400 Mb/s
2.4 GHz: 600 Mb/s
Interface
Inputs/Outputs 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
USB Sharing Support No
Security
Guest Network Support Yes
Wireless Security WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Management
Operation Modes Access Point
Supported Clients 300
Max SSIDs Supported 16
Mobile App Compatible Yes
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility
Hardware
RAM 512 MB
CPU to 1.35 GHz Cortex A53 Dual-Core
Supported IEEE Standards 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n
Electrical
DC Input Power 57 VDC
Power Consumption 16.5 W
Environmental
Operating Temperature 2 to 92°F / -30 to 60°C
Operating Humidity 5 to 95%
General
Environmental Protection None
Certifications CE, FCC, IC
*as per Manufacturer
Mount Options Wall, Ceiling
Dimensions 8.7 x 8.7 x 1.9" / 220 x 220 x 48 mm
Weight 1.8 lb / 800 g
Packaging Info
Package Weight 3.695 lb
Box Dimensions (LxWxH) 10.8 x 10.6 x 3.4"
