Key Features
802.11 a/b/g/n/ac Wi-Fi Standards
Range of up to 400'
2 x 10/100/1000 Ethernet Ports
UniFi Controller Software
Integrated Omni Antennas
Guest Portal/Hotspot Support
Passive Power over Ethernet
200+ Concurrent Clients
Reset Button
CE, FCC, IC Certified

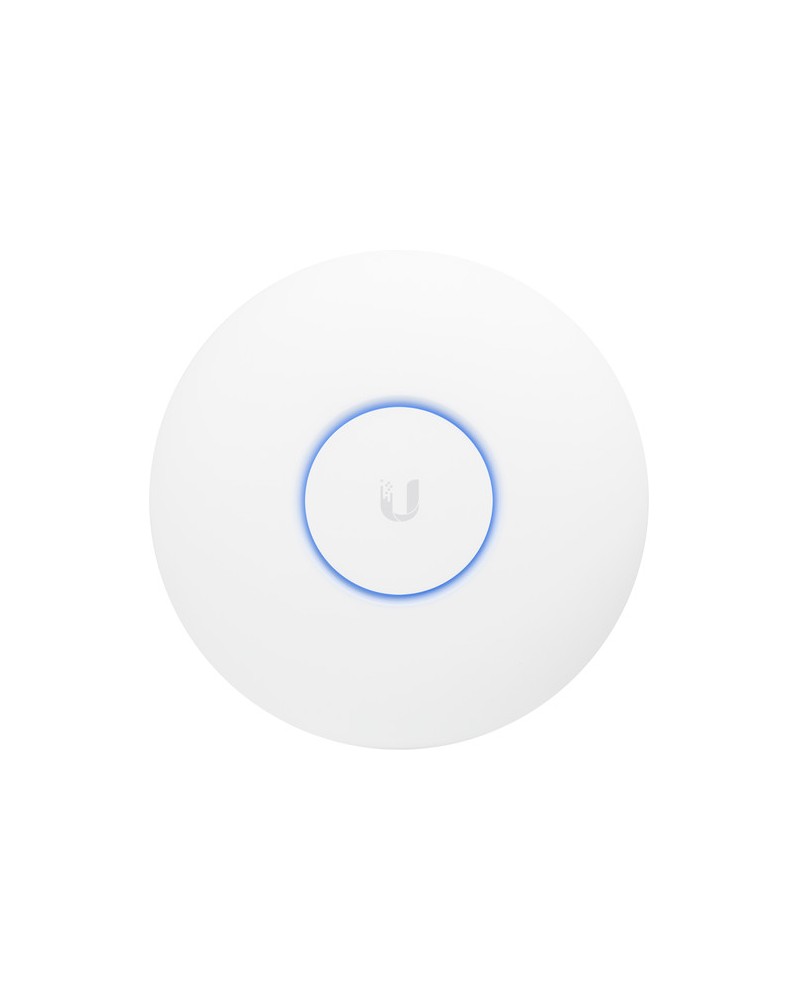

The UAP-AC-PRO UniFi Access Point Enterprise Wi-Fi System from Ubiquiti Networks is a scalable enterprise access point solution designed to be easily deployed and managed. It supports the 802.11ac Wi-Fi standard with speeds of up to 1300 Mb/s in the 5 GHz radio band, and up to 450 Mb/s in the 2.4 GHz radio band. The Wi-Fi system offers simultaneous dual band operation with 3 x 3 MIMO technology for each band. It has a range of up to 400' and two Gigabit Ethernet ports. The PoE mode supports 802.3af PoE and 802.3at PoE+. This UniFi Access Point (AP) has a sleek design and can be easily mounted to a ceiling tile or wall, using the included mounting hardware.
The Wi-Fi system includes UniFi Controller software that can be installed on a Windows, Mac, or Linux machine within the network, and is easily accessible through a standard Web browser. Using the UniFi Controller software, an Enterprise Wi-Fi network can be quickly configured and administered, without any special training. Real-time status, automatic UAP device detection, map loading, and advanced security options are all seamlessly integrated in the system. This access point comes with a PoE injector.
UniFi AP
Save Money and Save Time
The UniFi AP comes bundled with a non-dedicated software controller that can be deployed on an on-premise Windows, Mac, or Linux machine, in a private cloud, or using a public cloud service.
Wi-Fi 802.11ac MIMO Technology
The 802.11ac MIMO Technology offers Gigabit speeds and range up to 400'.
Intuitive UniFi Controller Software
Install, configure, and manage all of the UniFi APs with the intuitive and user-friendly UniFi controller user interface.
Expandable
Build wireless networks as big or small as needed. Start with one or more and expand to thousands, while maintaining a single unified management system.
Controller
UniFi Controller
Use the UniFi controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.
Analytics
You can use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.
Guest Portal/Hotspot Support
Easy customization options for guest portals include authentication, hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for guest portal/hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use. The UniFi AP includes hotspot functionality. It includes built-in support for billing integration using major credit cards, and built-in support for voucher-based authentication. It also includes a built-in hotspot manager for voucher creation, guest management, payment refund, full customization, and branding of hotspot portal pages.
Multi-Site Management
A single UniFi Controller running in the cloud can manage multiple sites, multiple, distributed deployments, and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portals, and administrator read/write, and read-only accounts.
WLAN Groups
The UniFi controller can manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio.
Maps
Upload map images of your location for a visual representation of each wireless network.
Statistics
UniFi organizes and visualizes network traffic in clear and easy-to-read graphs.
Extend Your Coverage
With the UniFi controller software running in an NOC or in the cloud, administrators can extend and centrally manage the wide areas of indoor and outdoor coverage, using any combination of UniFi APs.
Easy Mounting
Sleek wall or ceiling mount design (all accessories included).
Design
It has an industrial design with an LED provisioning ring or square, which provides administrator location tracking and alerts for each device.
Power over Ethernet (PoE)
Power over Ethernet (PoE) functionality allows both power and data to be carried over a single Ethernet cable to the device. The unit can also be powered from the Ubiquiti TOUGHSwitch PoE PRO (sold separately).
Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Number of Antennas 3
MU-MIMO Support 3 x 3
Antenna Gain 3 to 6 dBi
Transmit Power 22 dBm
Bluetooth Yes
Throughput 1750 Mb/s Total
2.4 GHz: 450 Mb/s
5 GHz: 1300 Mb/s
Interface
Inputs/Outputs 2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+
Security
Wireless Security AES, TKIP, WEP, WPA, WPA-PSK, WPA2
Management
Supported Clients 200
Mobile App Compatible Yes: Android & iOS
App Name: UniFi
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility
Hardware
Media Card Reader Yes
Supported IEEE Standards 802.11i, 802.3af, 802.3at
Electrical
Power Consumption 9 W
Environmental
Operating Temperature 22 to 102°F / -10 to 70°C
Operating Humidity 5 to 95% (Non-Condensing)
General
Certifications FCC, CE, IC
*as per Manufacturer
Dimensions 7.7 x 7.7 x 1.4" / 19.7 x 19.7 x 3.5 cm
Weight 1 lb / 0.5 kg
Packaging Info
Package Weight 2.2 lb
Box Dimensions (LxWxH) 11.65 x 9.8 x 2.4"
