Key Features
1x UniFi Access Hub
1x UniFi Access Reader Pro
1x UniFi Access Reader Lite
20 x UniFi Access Cards
Supports Electric Bolts & Magnetic Locks
Works with UniFi Access Controller

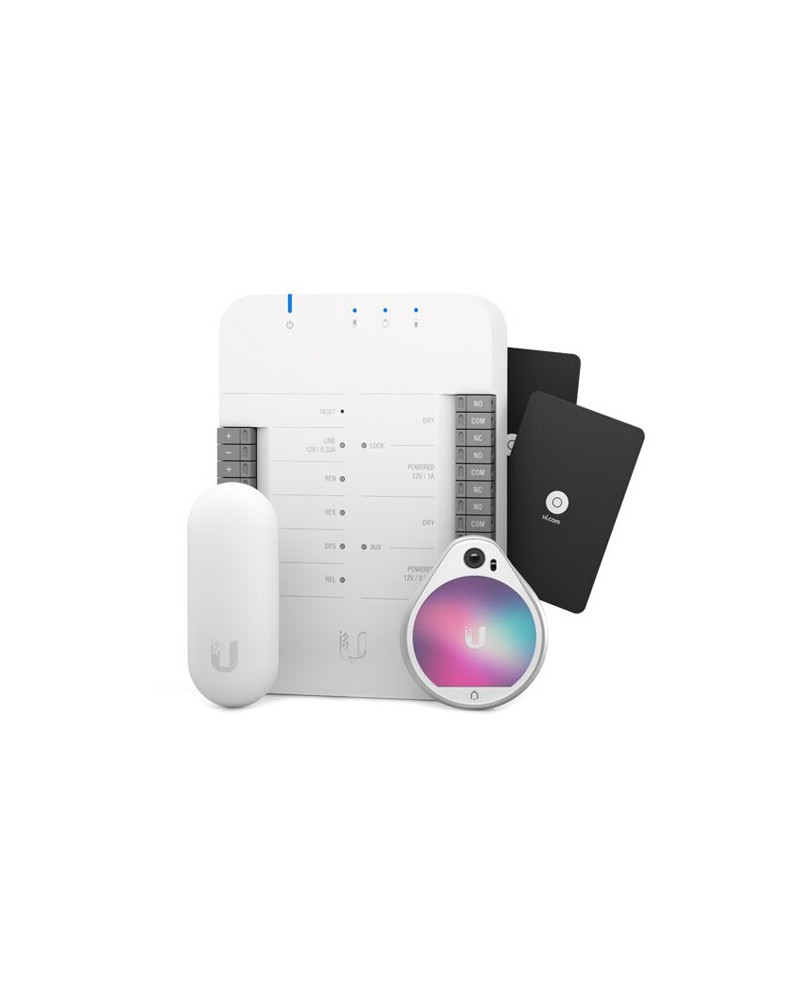

With the UniFi Access Starter Kit from Ubiquiti Networks, you'll have everything you need to quickly set up a secure access control system for your business. This kit includes a UniFi Access Hub, a UniFi Access Reader Pro, a UniFi Access Reader Lite, and 20 UniFi Access Cards to allow or deny access through networked doors. The system is powered using a separately purchased PoE-compliant switch and works with most electric bolts and magnetic locks. The UniFi Access Controller software allows you to remotely manage users, visitors, schedules, and access policies. Please note that a UniFi Dream Machine Pro or Cloud Key Plus is required to run UniFi Access.
Ubiquiti Networks UniFi Access Hub
Implement access control, security, and authentication at an entryway with the DIN-rail mountable UniFi Access Hub from Ubiquiti Networks. This unit is a networked single door controller powered by an 802.3bt PoE++ switch. Input relays on this hub support request-to-exit, request-to-enter, door position switch, and remote release devices. Additionally, the hub's 12V powered and dry output relays are compatible with most locks. Management of this device is via the UniFi Access Controller software.
Works in conjunction with other UniFi Access products
Compatible with most electric bolts/strikes, magnetic locks, and 12V access control accessories such as motion sensors, push buttons, and alarms
Manage users, visitors, schedules, and more with the UniFi Access Controller software
CE, FCC, and IC certified
Networking Interface 4 x Gigabit Ethernet Ports
Power Method 802.3bt PoE
Input Relays REX: Request to Exit
REN: Request to Enter
REL: Remote Release
DPS: Door Position Sensor
Output Relays Dry Output Relay
Lock: Rated 30 VDC, up to 1 A
Aux: Rated 30 VDC, up to 1 A
Powered Output Relay
Lock: 12 VDC , up to 1 A
Aux: 12 VDC, up to 0.33 A
Line: 12 VDC, up to 0.33 A
LEDs 1 x System
3 x PoE Out
4 x Input
2 x Output Relays
1 x 12 VDC Out
Buttons Terminal Blocks, Reset
Mounting Options DIN Rail
Enclosure Characteristics Plastic Enclosure with Metal Mount Plate
Maximum Power Consumption 40 W
Operating Temperature 32 to 104° / 0 to 40°C
Operating Temperature 5 to 90%, Noncondensing
Certifications CE, FCC, IC
Dimensions 7.48 x 4.96 x 1.29" / 190 x 126 x 33 mm
Weight 16.12 oz / 457 g
Packaging Info
Package Weight 1.71 lb
Box Dimensions (LxWxH) 8.7 x 6.5 x 1.9"
Ubiquiti Networks UniFi Access Reader Pro Specs
Frequency 13.56 MHz
Read Range <1.2" / <30 mm
Standards ISO 14443A, 14443B, 15693
Technology NFC Tag 1, 2, 3, 4, 5
MIFARE Classic
MIFARE Plus
MIFARE Ultralight
MIFARE DESFire EV1/EV2
Encryption AES-128
Type NFC, Bluetooth
Display Touchscreen
Integrated Camera Yes
Viewing Angle 147.5° (±3°)
Networking Interface 100M Ethernet
Connectivity Ethernet, BLE 4.2
Power Method 802.3af PoE
Reset Button Yes
LEDs Blue, White
Maximum Power Consumption 8.3 W
Operating Temperature 14 to 104° / -10 to 40°C
Operating Humidity 50 to 90%, Noncondensing
IP Rating IP54
Mounting Options Wall Mount or Alloy Clamp Holder
Certifications CE, FCC, IC
Dimensions 2.89 x 2.45 x 1.05" / 73.40 x 62.28 x 26.55 mm
Weight 3 oz / 85 g
Packaging Info
Package Weight 0.65 lb
Box Dimensions (LxWxH) 4.1 x 3 x 2.6"
Ubiquiti Networks UniFi Access Reader Lite Specs
Frequency 13.56 MHz
Read Range <1.2" / <30 mm
Standards ISO 14443A, 14443B, 15693
Technology NFC Tag 1, 2, 3, 4, 5
MIFARE Classic
MIFARE Plus
MIFARE Ultralight
MIFARE DESFire EV1/EV2
Encryption AES-128
Type NFC, Bluetooth
Networking Interface 100M Ethernet
Connectivity Ethernet, BLE 4.1
Power Method 802.3af PoE
Reset Button Yes
LEDs Blue, White
Maximum Power Consumption 6 W
Operating Temperature -40 to 104° / -40 to 40°C
Operating Humidity 5 to 90%, Noncondensing
IP Rating IP54
Mounting Options Wall Mount
Certifications CE, FCC, IC
Dimensions 3.74 x 1.57 x 1.22" / 94.91 x 40 x 31.1 mm
Weight 2.29 oz / 65 g
Packaging Info
Package Weight 0.33 lb
Box Dimensions (LxWxH) 4.5 x 2.6 x 1.9"
Ubiquiti Networks UniFi Access Card (20-Pack) Specs
Compatibility UniFi Access System
Card Type NFC
Frequency 13.56 MHz
Format ISO 7810 ID-1
Technology ISO/IEC 14443 Type A
MIFARE DESFire EV2
UniFi Access Proprietary Security Protocol
Encryption AES-128
Dimensions 3.37 x 2.13 x 0.033" / 85.6 x 53.98 x 0.84 mm
Weight 0.18 oz / 5 g
Packaging Info
Package Weight 0.505 lb
Box Dimensions (LxWxH) 4.2 x 2.8 x 1.7"
