Key Features

One-Way Control for up to Four Doors

Wiegand/RS-485/Network Two-Way Control

TCP/IP Network Communication

Works with Parking Gates

Grants Access to Elevator Call Buttons

Capable of Reading up to 100,000 Cards

1,000,000 Events & Data Logging

802.3at PoE

Tampering Alarm

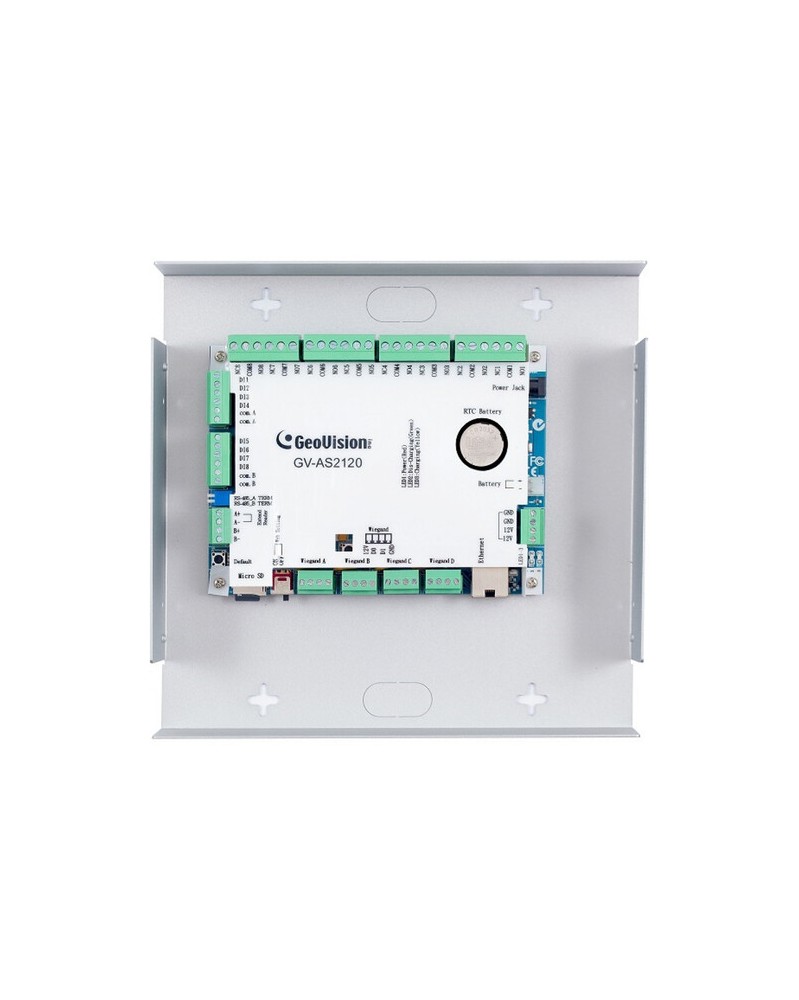

Implement one-way and two-way control for up to four doors with the GV-AS2120 IP Control Panel from GEOVISION. Utilizing RS-485, Wiegand, and TCP/IP interfaces, this device is not only suitable for controlling up to four doors, it is capable of controlling parking gates and granting access to elevator call buttons. Additionally, it can read up to 100,000 cards for unique access control and provide data logging for up to 1,000,000 events. A tampering alarm provides an additional layer of security.

Suitable for controlling doors, parking gates, and enabling access to elevator call buttons

Compatible with GV-ASManager version 4.3 or later

Compatible with GV-Readers and GV-GF Fingerprint Readers through RS-485 or network connection

Four Wiegand card readers of 26 to 64 bits

Replaceable button cell battery

Complete Two-Way Control Functionality

Two doors by Wiegand only

Four doors by RS-485/network

Four doors with maximum two doors by Wiegand and other doors by RS-485/network

General

Compatibility GEOVISION Access Control Devices

Battery

Cells 1

Environmental

Certifications CE, FCC, RoHS

*as per Manufacturer

Operating Temperature 32 to 149°F / 0 to 65°C

Operating Humidity 10 to 90% (Non-Condensing)

Physical

Dimensions 8.3 x 8 x 1.8" / 210 x 204 x 46.6 mm (Case Included)

Weight 1.8 lb / 810 g (Case Included)

Packaging Info

Package Weight 2.575 lb

Box Dimensions (LxWxH) 12.1 x 11.6 x 3.8"
