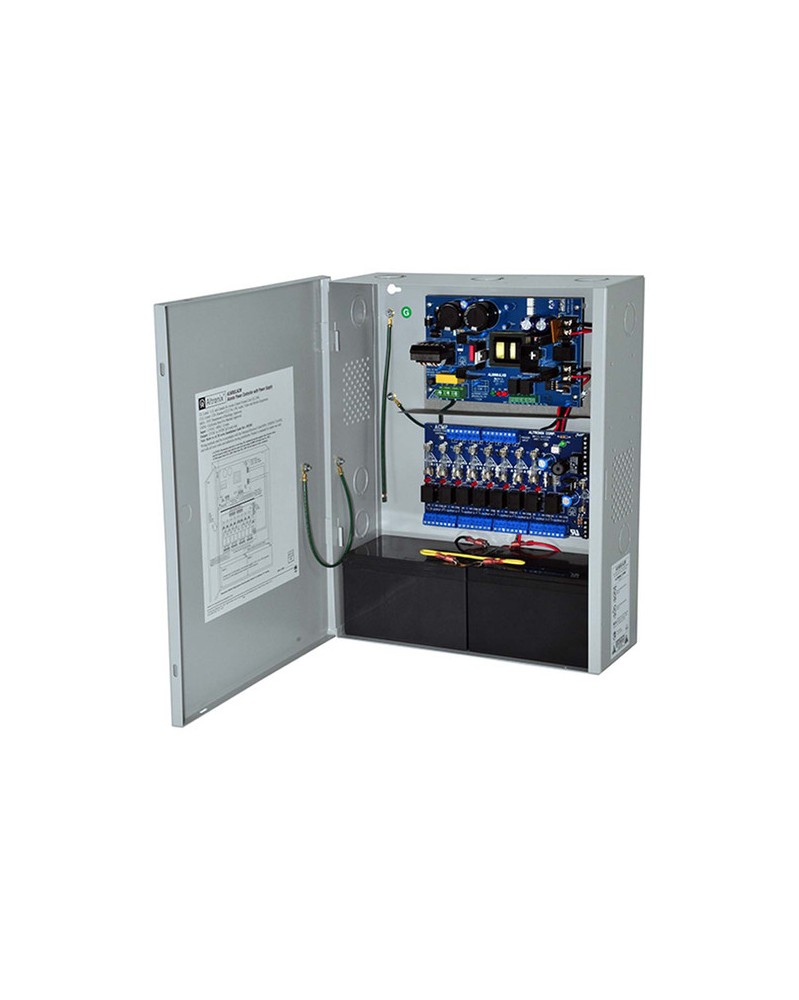

Model AL600ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL600ULACMCB is a PTC protected version of this unit.

Electrical

AC Input Power 110 VAC, 60 Hz at 1.9 A

Output Voltage 24 VDC

Environmental

Certifications RoHS

*as per Manufacturer

Operating Humidity 85%

Operating Temperature 32 to 120°F / 0 to 48°C

Storage Temperature -4 to 158°F / -20 to 70°C

General

Number of Connections 8

Dimensions 15.5 x 12 x 4.5" / 393.7 x 309.9 x 114.3 mm

Weight 10.3 lb / 4.7 kg

Packaging Info

Package Weight 10.435 lb

Box Dimensions (LxWxH) 16.6 x 13.55 x 5.85"
