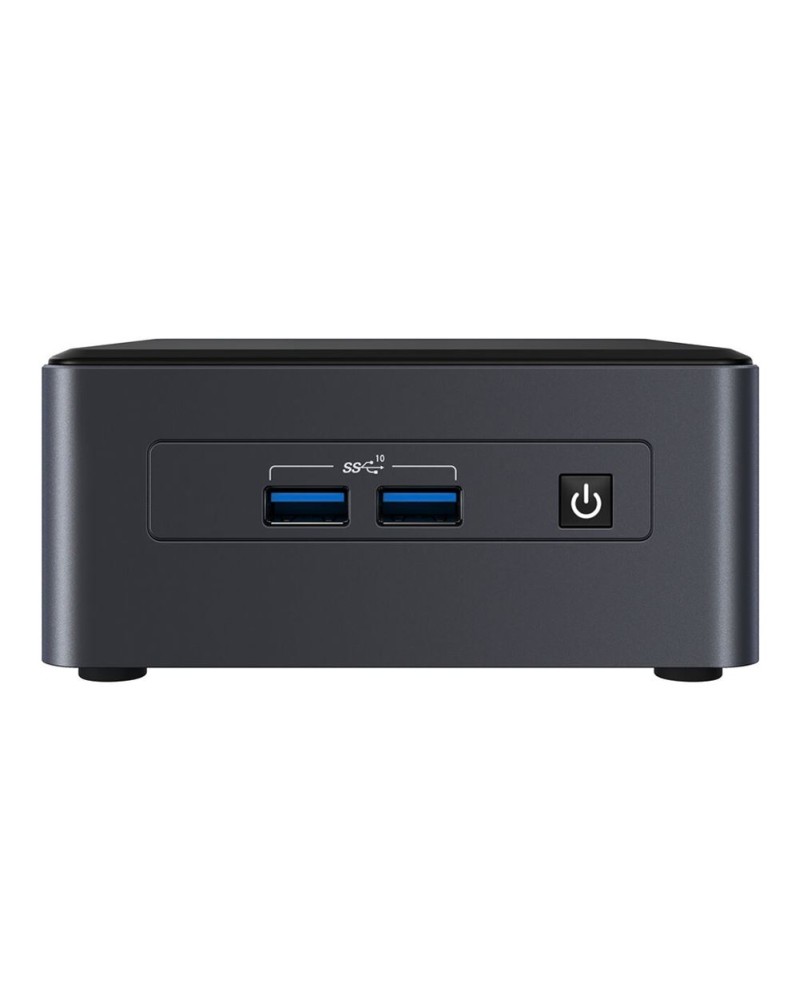

NUC 11 Pro Kit BNUC11TNHI70001 MinPC
11th Gen Core i7 Barebones System
11th Gen Core i7 Barebones System
Intel NUC Pro Mini PCs, Kits and boards are compact systems built to drive the future of business. There are more choices than ever before, from fully built mini PCs to customizable kits powered by the full range of 11th Gen Intel Core processors. All are designed to deliver the performance businesses need for edge compute, office productivity, and collaboration.
PRODUCT INFORMATION
SKU
281964
Mfr Part#
BNUC11TNHI70001
UPC
735858465762
MOTHERBOARD
Motherboard
Intel NUC11TNBi7
Socket Type
Soldered FCBGA1449
CPU Brand Support
Intel
Memory Capacity
64GB
Memory Slots
2 x 260 pin SO-DIMM
Memory Slots (Available)
2
Motherboard Dimensions (WxD)
4.00 in. (101.60 mm) x 4.00 in. (101.60 mm)
Memory Type
DDR4-3200
PROCESSOR
Processor
Intel Core i7-1165G7 2.80GHz
Heatsink
Intel NUC Heatsink
CPU Brand
Intel
CPU Core
Tiger Lake
Cores
Quad-Core
CPU Speed
1165G7 (2.80GHz)
Turbo Boost Speed
4.70GHz
Smart Cache
12MB
TDP (Thermal Design Power)
28 Watts
Front Side Bus
4GT/s
CPU Main Features
Intel Virtualization Technology (VT-x)
Idle States
Thermal Monitoring Technologies
Intel VT-x with Extended Page Tables (EPT)
Intel Optane Memory Supported
Intel Speed Shift Technology
Intel Turbo Boost Technology 2.0
Intel Hyper-Threading Technology
Intel Virtualization Technology for Directed I/O (VT-d)
Intel AES New Instructions
Intel Deep Learning Boost
Intel Volume Management Device (VMD)
Intel Gaussian and Neural Accelerator 2.0
Intel Smart Sound Technology
Intel Wake on Voice
Intel High Definition Audio
Intel Adaptix Technology
MIPI SoundWire 1.1
Intel Platform Trust Technology
MEMORY
Memory Included
No
STORAGE
Hard Drive Included
No
SSD / NVMe Included
No
COMPUTER CASE
Liquid Cooling Included
No
Case
Intel NUC UCFF
Form Factor
UCFF
Case Color
Black
Motherboard Support
UCFF
DRIVE CONTROLLERS
SATA Express
1 x M.2 NVMe M-Key
1 x M.2 NVMe B-Key
COMMUNICATIONS
LAN Chipset
Intel i225-LM
LAN
10/100/1000 Mbps
WLAN Chipset
Intel Wi-Fi 6 AX201
Wireless Technology
802.11a
802.11b
802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
VIDEO
Graphics Card
Intel Iris Xe Graphics
GPU Chipset
Intel Iris Xe
GPU Brand
Intel
Video Memory
Shared
Display Interface
DisplayPort 1.4a
HDMI 2.0b
MULTIMEDIA DRIVES
Multimedia Drive Included
No
EXPANSION BAYS
Internal 2.5" Drive Bays
1 Total, 1 Available
PORTS & CONNECTORS
Front Ports
2 x USB 3.2 (Gen 2 Type-A)
Rear Ports
1 x DC Power Connector
2 x USB 3.2 (Gen 2 Type-A)
2 x Thunderbolt 4 (USB Type-C)
2 x HDMI 2.0b
POWER
Power Supply
Intel 19.5 VDC Power Supply
Power Connectors
Rear Panel DC Power Connector
PHYSICAL SPECIFICATIONS
Width
4.61 in. (117.09 mm)
Depth
4.41 in. (112.01 mm)
Height
2.13 in. (54.10 mm)
Box Dimensions (WxDxH)
7.00 x 5.90 x 4.20 in. (177.80 x 149.86 x 106.68 mm)
WHAT'S IN THE BOX
Operating System Included
No
What's in the Box
NUC 11 Pro Kit BNUC11TNHI70001 Mini PC; 11th Gen Core i7 System, 19.5 VDC Power Supply, Documentation
