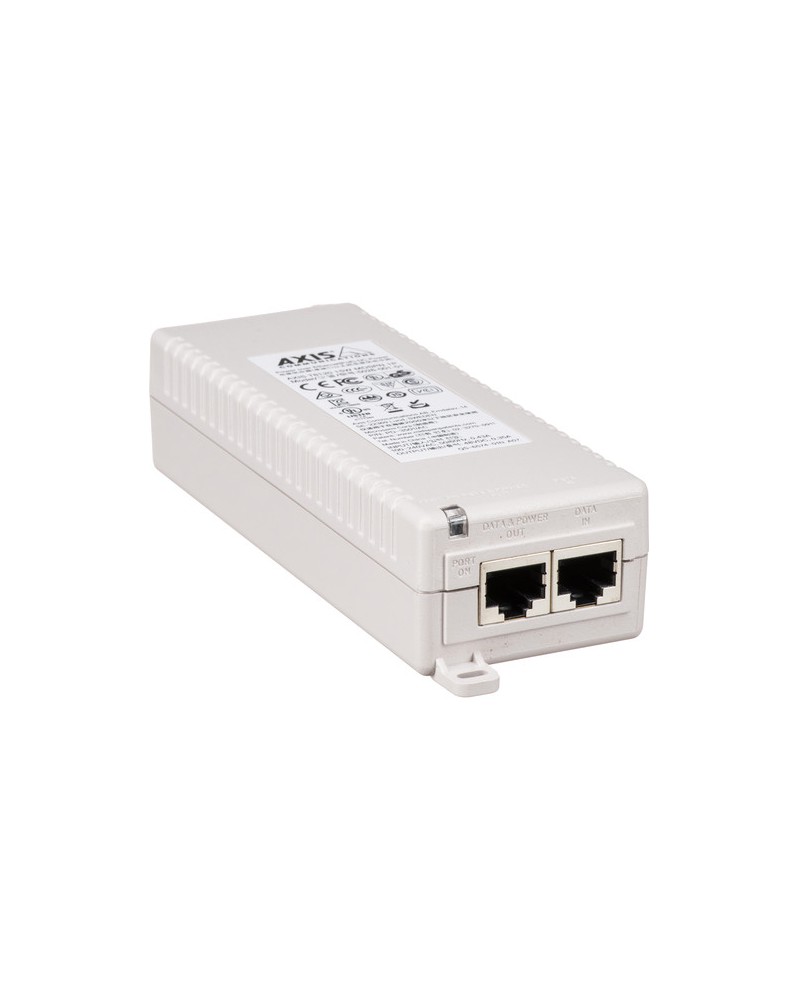

Axis Communications T8120 Overview

With the T8120 Power over Ethernet Midspan from Axis Communications a standard network can be infused with up to 15.4 watts of power. Once this plug-and-play 802.3af compliant device is installed devices like IP cameras, VoIP equipment, and more can draw power directly from the network thus eliminating the need for multiple power supplies.

Used to power PoE-enabled network video products

Provides power and data connections via the same Ethernet cable

Supplies 15.4W of maximum power

IEEE 802.3af compliance ensures compatibility with Axis network video products that have built-in support for Power over Ethernet

Axis Communications T8120 Specs

Function Data and power are fed to a network video product through an Ethernet cable, use together with a PoE splitter for a network video product without built-in PoE support

Data Rate 10/100/1000 Mbps

Data & Power

Connectors Shielded RJ45, EIA 568A, and 568B

Network Cables Shielded category 5 (or higher) Ethernet

Wiring Mode B: Data provided over pairs 1/2 and 3/6, power over spare pairs 4/5 (+) and 7/8 (-)

Output Power 48 VDC (maximum 15.4 W/port)

Input Power AC Input Voltage: 100 to 240 VAC (50/60 Hz)

AC Frequency: 47 to 63 Hz

AC Input Current: 0.5 A maximal

Installation & Management Plug-and-play installation, midspans automatically detect all devices with support for PoE and supply inline power Local LED management display

Port Auto-Sensing Standard IEEE 802.3af auto-sensing

Pre-standard backward compatibility algorithm

General

Display & Indicators All port interfaces are located on the front panel for easy access and real-time network monitoring

System: AC power

Channel indicator - power and fault

Compliance IEEE 802.3 standard (when no inline power is supplied) and IEEE 802.3af, DTE Power via Media Dependent Interface (MDI)

Mounting Wall or shelf mounting

Approvals FCC Part 15 Class B with FTP cabling EN55022 (CISPR 22) Class B with FTP cabling

Safety: cUL/UL, TUV, CE

Operating Conditions Temperature: 32 to 104°F (0 to 40°C)

Humidity: 10 to 90% RH (Non-condensing)

Dimensions 1.3 x 2.1 x 5.5" (33 x 53 x 140 mm)

Weight 1 lb (450 g)

Packaging Info

Package Weight 0.94 lb

Box Dimensions (LxWxH) 8.05 x 5.8 x 2"
