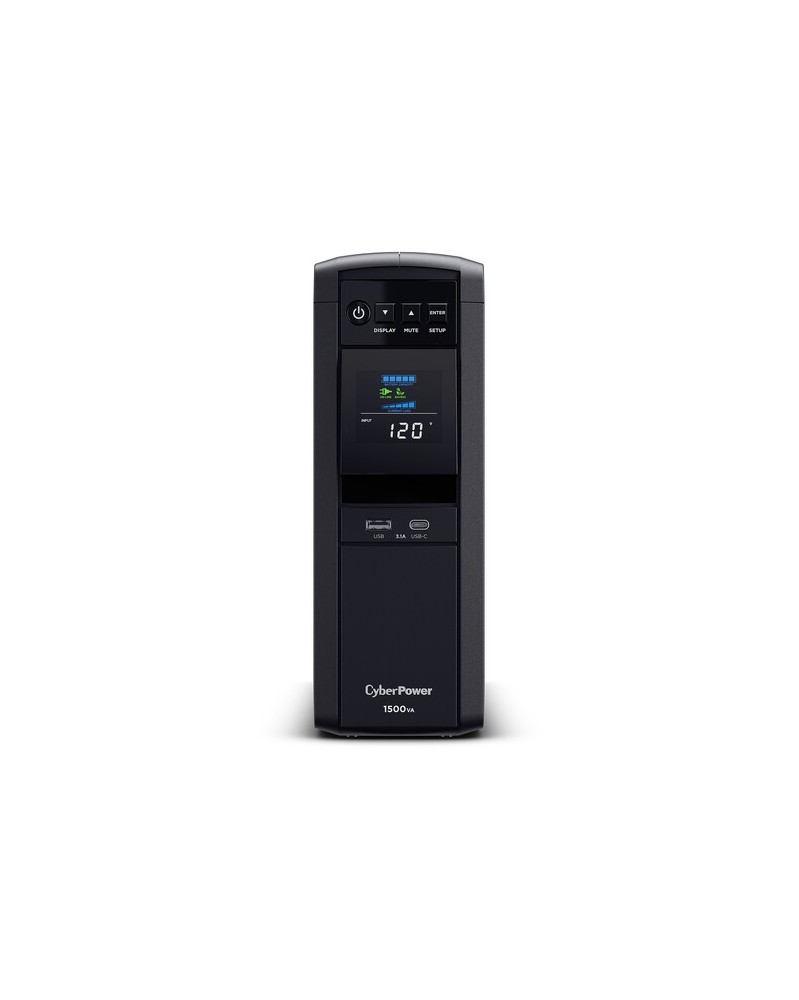

CyberPower CP1500PFC Overview

The CP1500PFCLCD PFC Sinewave UPS from CyberPower is a mini-tower device with line-interactive topology that provides battery backup via sine wave output and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility. It comes equipped with an output capacity of 1500 VA / 1000W, features an input voltage range of 88-144 VAC @ 57-63 Hz, Automatic Voltage Regulation (AVR) to help correct minor power fluctuations without switching to battery power, and has integrated circuitry for EMI/RFI filters. An integrated color LCD panel, which tilts up to 22°, can be used to quickly confirm status and alerts, while a USB Type-C and Type-A port share 3.1A for charging portable devices such as mobile phones and tablets.

When running at half capacity, this UPS can power devices for up to 10 minutes. When running with a full load, it can power devices for up to 2.5 minutes. It can be recharged in around 8 hours and offers twelve total NEMA 5-15R outlets, six of which are equipped with battery and surge protection, while the other six are only equipped with surge protection. The surge-protected outlets can absorb up to 1445 joules for keeping your devices safe against surges and spikes. Other connections offered are a right-angle NEMA 5-15P input plug with a 45° offset and 5' cord, plus serial, USB Type-B, Ethernet RJ45.

This power supply is ENERGY STAR qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Available as a free download is the PowerPanel Business Edition UPS management software, which requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $500,000.

General Features

Battery Backup

Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection

Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Sine Wave Output

The UPS generates energy that is identical to, or cleaner than the utility company's power grid. Benefits include low total harmonic distortion, minimal electrical noise, and optimal line clarity.

Multifunction LCD Panel with Color Display

Displays immediate, detailed information on the UPS battery and power conditions. The color display quickly alerts users to potential problems before they can affect critical equipment and cause downtime. Screen tilts up to 22° for easy viewing.

Automatic Voltage Regulation (AVR)

AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.

USB Charge Ports

Rapidly charge and power USB devices whether the UPS is providing utility or battery backup power. There is one USB Type-C port and one USB Type-A port that share 3.1A of power.

Data Line Protection

Helps prevent power surges that travel through Ethernet lines from causing damage to electronics.

Two Widely Spaced Outlets

The two widely-spaced outlets allow you to conveniently add transformer-sized plugs without blocking other outlets.

Line Interactive Topology

Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.

ENERGY STAR

This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

GreenPower UPS Bypass Design

A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

Quiet Design

Minimizes noise during operation for a quieter work environment.

PowerPanel Business Software

Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. This software can be downloaded for free from CyberPower.

Limited 3-Year Warranty

CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.

Connected Equipment Guarantee

CyberPower will repair or replace properly connected equipment if it is damaged by a power surge
