Key Features

2670 MHz Core Clock

7680 CUDA Cores

Ada Lovelace Architecture

12GB of GDDR6X VRAM

21 Gb/s Memory Speed

192-Bit Memory Interface

HDMI 2.1 | DisplayPort 1.4a

7680 x 4320 @ 60 Hz Max Resolution

PCIe 4.0 x16 Interface

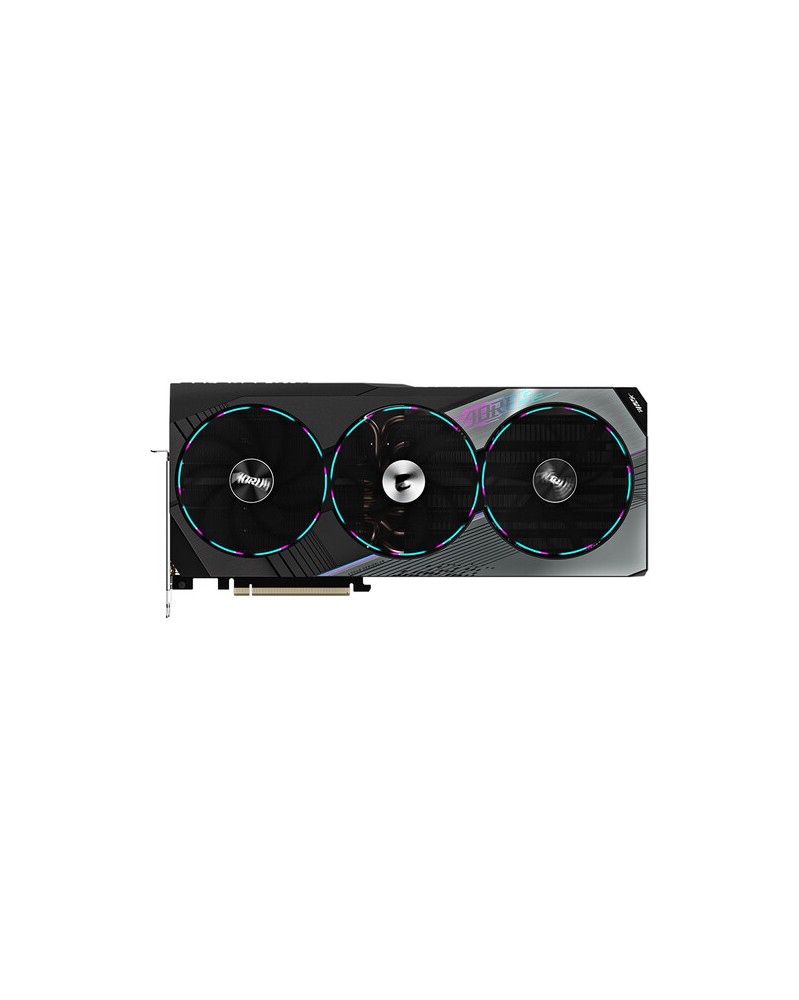

Based on the Ada Lovelace architecture and designed to handle the graphical demands of 4K gaming and 1440p at high frame rates, the Gigabyte GeForce RTX 4070 Ti AORUS MASTER Graphics Card brings the power of real-time ray tracing and AI to your PC games. The GPU features 12GB of GDDR6X VRAM and a 192-bit memory interface, offering improved performance and power efficiency over the previous Ampere-based generation.

The front panel of the card features a variety of outputs, such as DisplayPort 1.4a and HDMI 2.1. HDMI 2.1 supports up to 48 Gb/s bandwidth and a range of higher resolutions and refresh rates, including 8K @ 60 fps, 4K @ 120 fps, and even up to 10K. The RTX 4070 Ti is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 7680 cores to accelerate tasks using CUDA and other APIs.

For cooling, Gigabyte implemented the WINDFORCE cooling system. The three fans feature alternate spinning to reduce turbulence and increase airflow pressure. The 3D Active Fans provide semi-passive cooling, and the fans will remain off when the GPU is processing a low load or low-power game. The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. The graphene nano lubricant extends the life of the fans and makes them quieter. The card also has RGB Fusion, which has customizable color options and a variety of lighting effects. You can also use it to synchronize with other AORUS devices.

NVIDIA Ada Lovelace Architecture

NVIDIA Ada Lovelace architecture features 4th Gen Tensor Cores, 3rd Gen RT cores, Shader Execution Reordering (SER) technology, and more.

Ray Tracing

The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds for an immersive gaming experience.

NVIDIA DLSS 3

DLSS is a breakthrough in AI-powered graphics that massively boosts performance. Powered by the 4th Gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.

NVIDIA Reflex

NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver low latency and fast responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the optimal aim precision for competitive games.

NVIDIA G-SYNC

Get smooth, tear-free gameplay at high refresh rates, plus HDR and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.

Virtual Reality

The RTX 40 Series GPUs can deliver an immersive virtual reality experience.

Resizable BAR

Resizable BAR is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once, improving performance in many games.

GPU

GPU Model NVIDIA GeForce RTX 4070 Ti

Stream Processors 7680 CUDA Cores

Base Clock Speed 2670 MHz

Interface PCI Express 4.0 x16

Supported APIs DirectX: 12

OpenGL: 4.6

OpenCL: 3

Vulkan: 1.3

Shader Model: 6.7

Memory Speed 21 Gb/s

Memory Configuration 12 GB

Memory Interface GDDR6X

Memory Interface Width 192-Bit

Memory Bandwidth 504.2 GB/s

Display Support

Display I/O 3 x DisplayPort 1.4a

1 x HDMI 2.1a

Maximum Digital Resolution 7680 x 4320 @ 60 Hz

Power Requirements

PCI Power Connectors 1 x 16-Pin

Recommended System Power Requirement 750 W

Expansion Slot Compatibility Full Height

Height 6.0" / 153.00 mm

Length 13.5" / 342.00 mm

Width 3.5-Slot

Cooler Type Open Fansink with Three Fans

Lighting RGB LED

Packaging Info

Package Weight 5.75 lb

Box Dimensions (LxWxH) 19.3 x 11.1 x 4.6"
