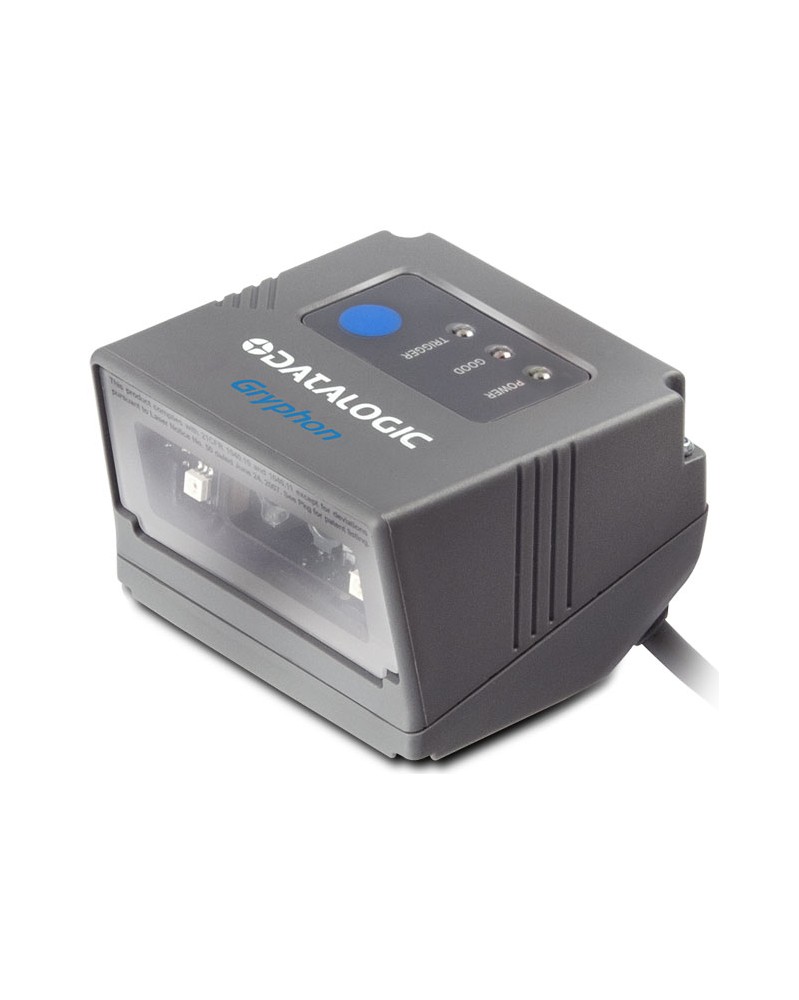

The Gryphon GFS4400 represents the premium level of data collection devices from Datalogic ADC. Using advanced imaging technology, the Gryphon GFS4400 2D fixed mount barcode reader provides a complete self-contained solution for OEM use into self-service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.
Technical Information
· Barcode Dimension:
o 1D
o 2D
· Scan Pattern: Omni-directional
· Connectivity Technology: Cable
· Image Sensor: Imager
· Barcode Symbology Supported:
o 1D / Linearcodes:
o Autodiscriminates all Standard 1D Codes
o GS1 DataBar Linearcodes
o 2D Codes:
o Aztec Code
o China Han Xin Code
o Data Matrix
o MaxiCode
o Micro QR Code
o QR Code
o Postal Codes:
o Australian Post
o British Post
o China Post
o IMB
o Japanese Post
o KIX Post
o Korea Post
o Planet Code
o Postnet
o Royal Mail Code (RM4SCC)
o Stacked Codes:
o EAN/JAN Composites
o GS1 DataBar Composites
o GS1 DataBar Expanded Stacked
o GS1 DataBar Stacked
o GS1 DataBar Stacked Omnidirectional
o MacroPDF
o MicroPDF417
o PDF417
o UPC A/E Composites
o 1D / Linearcodes:
o Autodiscriminates all Standard 1D Codes
o GS1 DataBar Linearcodes
o 2D Codes:
o Aztec Code
o China Han Xin Code
o Data Matrix
o MaxiCode
o Micro QR Code
o QR Code
o Postal Codes:
o Australian Post
o British Post
o China Post
o IMB
o Japanese Post
o KIX Post
o Korea Post
o Planet Code
o Postnet
o Royal Mail Code (RM4SCC)
o Stacked Codes:
o EAN/JAN Composites
o GS1 DataBar Composites
o GS1 DataBar Expanded Stacked
o GS1 DataBar Stacked
o GS1 DataBar Stacked Omnidirectional
o MacroPDF
o MicroPDF417
o PDF417
o UPC A/E Composites
· Depth of Field:
o 1.85" - 6.97"@5 mil - Code 39
o 0.67" - 13.07"@10 mil - Code 39
o 1.06" - 6.73"@10 mil - Data Matrix
o 0.47" - 9.69"@15 mil - Data Matrix
o 0.98" - 16.50"@13 mil - EAN
o 0.87" - 9.41"@10 mil - PDF417
o 1.38" - 6.30"@10 mil - QR Code
General Information
· Product Type: Fixed Mount Barcode Scanner
· Product Series: 4000
· Brand Name: Datalogic
· Manufacturer: Datalogic S.p.A
· Product Model: GFS4400
· Product Name: Fixed Mount Area Imager Barcode Reader
· Product Line: Gryphon
Physical Characteristics
· Weight (Approximate): 6 oz
Interfaces/Ports
· Host Interface: USB
Brand
Datalogic
Model
Gryphon GFS4400
Common Connection
USB
Scanner Type
2D-Imager
Ruggedness
General Purpose
