The ScanPlus 1800 is a fast and accurate answer for your contact and non-contact scanning needs.

Compatible for contact and non-contact applications, the ScanPlus 1800 provides the flexibility your operation needs by providing a choice of different scan engines. A universal host interface system allows the ScanPlus 1800 to be connected to many hundreds of PC's, cash registers, or other terminals simply by changing the cable and software set-up. Firmware upgrades or special applications are easily implemented using flash memory easily extending your solutions potential. All units ship with product documentation.

Intermec 0-360052-00 Overview

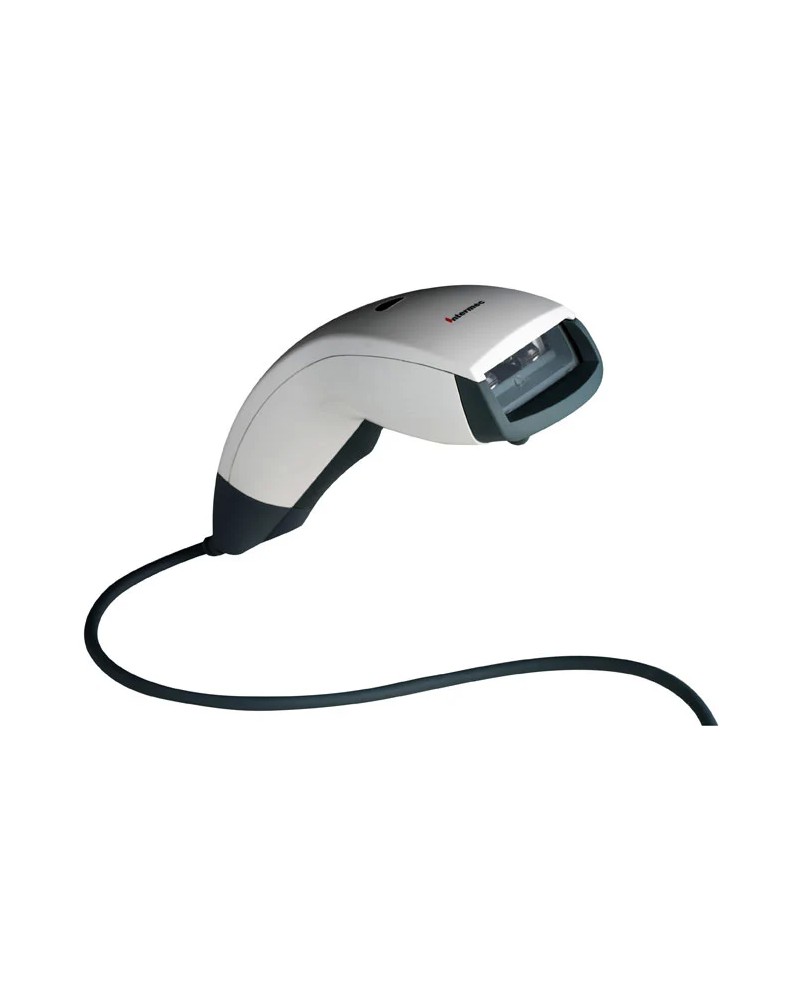

The Intermec ScanPlus 1800SR Bar Code Reader is a cost effective, yet full-featured supply chain solution for retail, office, healthcare and light industrial applications. Offering the flexibility of CCD or laser versions, the ScanPlus 1800SR Bar Code Reader is a fast and accurate answer for your contact and non-contact scanning needs.

Technical Information

Connectivity Technology:

Cable

Barcode Symbology Supported:

UPC E

UPC A

Code 39

Interleaved 2 of 5

Matrix 2 of 5

Industrial 2 of 5

Standard 2 of 5

Code 128

UCC EAN 128

Codabar

Code 93

MSI Plessey

Light Source:

LED

Image Sensor Type:

Linear

Scan Rate:

400 scan/s

Maximum Scan Resolution:

4 mil

Interfaces/Ports

Host Interface:

Multi-interface

Physical Characteristics

Form Factor:

Handheld

Color:

Gray

White

Width:

1.3"

Depth:

7"

Weight (Approximate):

5.11 oz

Miscellaneous

Additional Information:

Interfaces Supported:

RS232

IBM 46xx

PS2/Keyboard Wedge

USB Cable separate

Platform Supported:

PC

Item Numbers

UNSPSC: 43211701
