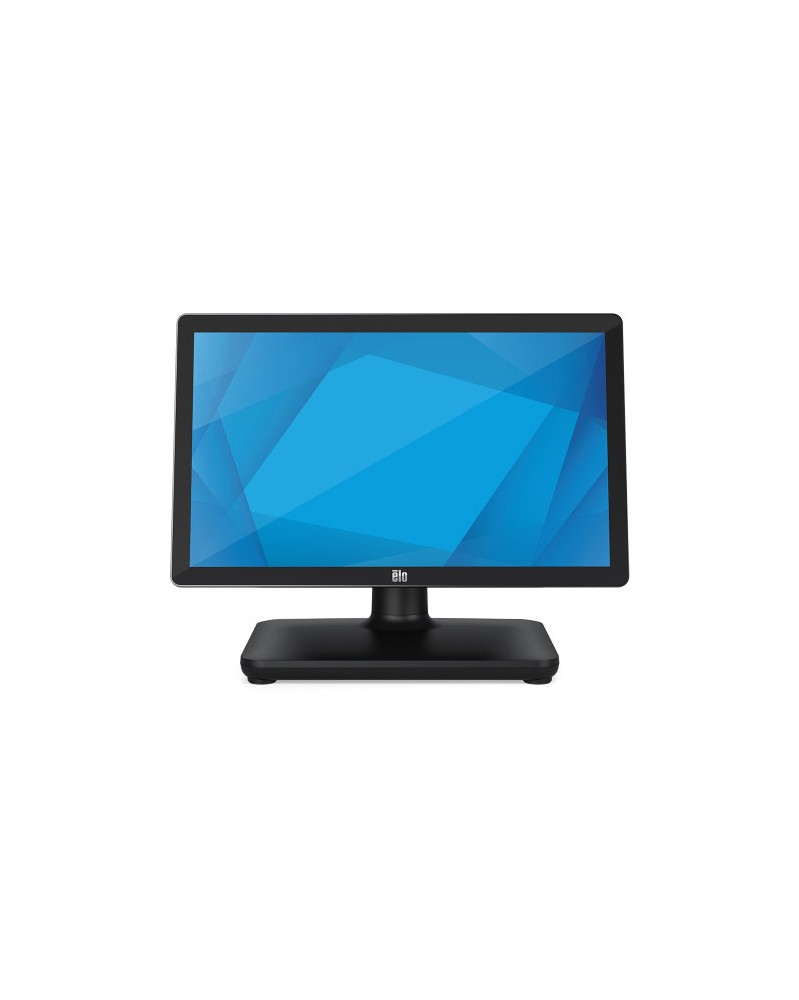

The versatile EloPOS System combines modern aesthetics, modular flexibility and commercial-grade reliability. Purpose-built for point of sale, EloPOS offers a 21.5-inch touchscreen display, choice of Intel’s 8th generation processors and an integrated expansion hub to connect the peripherals you need - whether a customer facing display, payment reader, printer, cash drawer, barcode scanner or scale. From traditional POS to self-service applications, EloPOS delivers the durability needed to survive continuous public use and is backed by Elo’s standard 3-year warranty.

The expansion hub allows you to connect all of the POS peripheral support you need. From cash drawers and printers to barcode scanners and payment devices — there is connectivity to cover it all. With two models, the hub is integrated into the base of the EloPOS stand or mounted to the back of the display for pole and wall mount configurations

·        Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Processor

Celeron: Intel® Celeron® J4125 Processor (4M Cache, up to 2.7 GHz)

i3: Intel Core i3-9100TE Processor (6M Smart Cache, up to 3.20 GHz by Intel Turbo Boost Technology 2.0)

i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support

Chipset

Celeron Models: N/A

i3 Models: Intel H310 Express

i5 Models: Intel Q370 Express

Graphics

Celeron Models: Intel UHD Graphics 600

i3 & i5 Models: Intel UHD Graphics 630

BIOS

AMI

Memory (RAM)

Celeron Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 8GB)

i3 Models: 4GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)

i5 Models: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (expandable to 32GB)

NOTE: Check brand of the memory included in your unit before purchasing the memory kit.

Storage

128GB M.2 SATA SSD, 80 TBW

256GB M.2 SATA SSD, 160 TBW

Optional M.2 PCIe (NVMe) SSD for select models

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

TPM

2.0

Active Management Technology (AMT)

Celeron Models: N/A

i3 Models: N/A

i5 Models: Active Management Technology (Intel® AMT 11.0) Support.

Diagonal Size

21.5'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area (mm)

18.74" x 10.54" / 476.1 mm x 267.8 mm

Resolution

1920 x 1080 @ 60Hz

Number of Colors

16.7 million

Brightness (typical)

LCD Panel: 250 nits

PCAP: 212.5 nits

Response Time-total (typical)

14 msec

Contrast Ratio

1000:1

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

USB Ports

3 x USB 3.0 (1 on display head, 2 on I/O)

2 x USB 2.0 (on I/O)

4 x Micro USB 2.0 (on display head)

Powered USB

1 x 24V on I/O

2 x 12V on I/O

Ethernet Port

1 x LAN RJ45 (Gigabit)

Serial Ports

2 x RJ45

Cash Drawer Port

12V/24V Cash Drawer Port on I/O (EPSON Pinout, 24V default; selectable by internal switch)

Wireless

Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

Bluetooth

Bluetooth 5.0

Additional Video Out

1 x Full-function USB-C (Power up to 27W, USB 3.0, Display Port)

Audio Ports

1 x 3.5 mm headset jack

Speakers

2 x 2W internal speakers

OS

No OS

Windows 10 IoT Enterprise LTSC 64-bit

Optional - Windows 10 Professional English 64-bit

Languages

Windows 10 - 36 Language groups

Power Supply

External 24VDC universal-type power supply brick

AC input voltage: 100-240 VAC

Input frequency: 50-60 Hz

Maximum output power: 180W

Power Consumption (Typical)

Celeron: 31 W

i3: 72 W

i5: 81 W

Dimensions

With Stand: 16.4" x 20.7" x 10.15" / 416.4 mm x 525.9 mm x 257.8 mm

Without Stand: 16.4" x 20.7" x 3.33" / 416.4 mm x 525.9 mm x 84.7 mm

Shipping Box Dimensions

With Stand: 25.35" x 14.76" x 21.57" / 644 mm x 375 mm x 548 mm

Without Stand: 25.35" x 8.9" x 17.72" / 644 mm x 226 mm x 450 mm

Weight (Unpackaged)

With Stand: 19.6 lbs / 8.9 kg

Without Stand: 13.2 lbs / 6 kg

Weight (Packaged)

With Stand: 26.2 lbs / 11.9 kg

Without Stand: 18.5 lbs / 8.4 kg

Operating Temperature

0°C to 35°C / 32°F to 95°F

Storage Temperature

-20°C to 60°C / -4°F to 140°F

Humidity

Operating: 20% to 80%

Storage: 5% to 95% (38.7℃ max wet bulb temperature)

Energy Star

Energy Star 7.1

Regulatory approvals and declarations

UL/cUL, FCC, TUV, CE, CB, UKCA, Mexico NOM, C-Tick/RCM, VCCI, Argentina S-Mark, CCC

Real-Time Clock

CR2032 lithium metal battery

MTBF

50,000 hours demonstrated

Mounting Options

75mm or 100mm VESA mount

Warranty

3-year

Extended Service Options

4 year warranty coverage - Elo P/N: E819598

5 year warranty coverage - Elo P/N: E819795

3 year warranty coverage + AUR - Elo P/N: E820186

4 year warranty coverage + AUR - Elo P/N: E820388

5 year warranty coverage + AUR - Elo P/N: E820582

Sealability

Touchscreen sealed to sub-bezel

Touchscreen sealed to LCD

Power Cables

North American and European power cables included

Other Features

Serviceable internal components.

Models with a stand for desktop application.

Models without a stand for 75mm VESA mounting.

Kensington lock.

What's in the Box

EloPOS System

North America Power Cord

EU Power Cord

Power Adapter – 180W

Cable RJ-45 to DB-9

Cable cover locking screw

Quick Installation Guide (QIG)

Upgrade Options

4GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264186

8GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E264375

16GB 2666 MHz DDR4 Memory SO-DIMM - Elo P/N: E263989

M.2 SATA 128GB SSD – Elo P/N: E206352

M.2 SATA 256GB SSD – Elo P/N: E206556

Note: Celeron SKUs only support 4GB DDR4 per slot

Optional Peripherals

Magnetic Stripe Reader (MSR) – Elo P/N: E001002

Fingerprint Scanner – Elo P/N: E134286

10" LCD Customer-facing Display (10 touch) – Elo P/N: E155834 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))

10" LCD Customer-facing Display (no touch) – Elo P/N: E324341 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))

1302L Customer-facing Display (10 touch) – Elo P/N: E683595 (requires both the display mount kit E835969 and Elo 2ft USB-C cable E969524))

2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627

EMV Cradle for MagTek eDynamo - Elo P/N: E375343

EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981

EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930

Status Light (Micro-USB Connectivity) - Elo P/N: E644767

6ft Elo authorized USB-C cable – Elo P/N: E710364

RFID - Elo P/N: E673037

Stands, Mounts & Kits

Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382

Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069

Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458

Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663

Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864

Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151

Rear-facing Display Mount - Elo P/N: E835969 (Requires authorized 2ft USB-C cable)

Power Brick Kit, 24V 180W - Elo P/N: E845269

Elo 2ft authorized USB-C cable - Elo P/N: E969524

RJ45 to DB9 cable kit - Elo P/N: E641484
