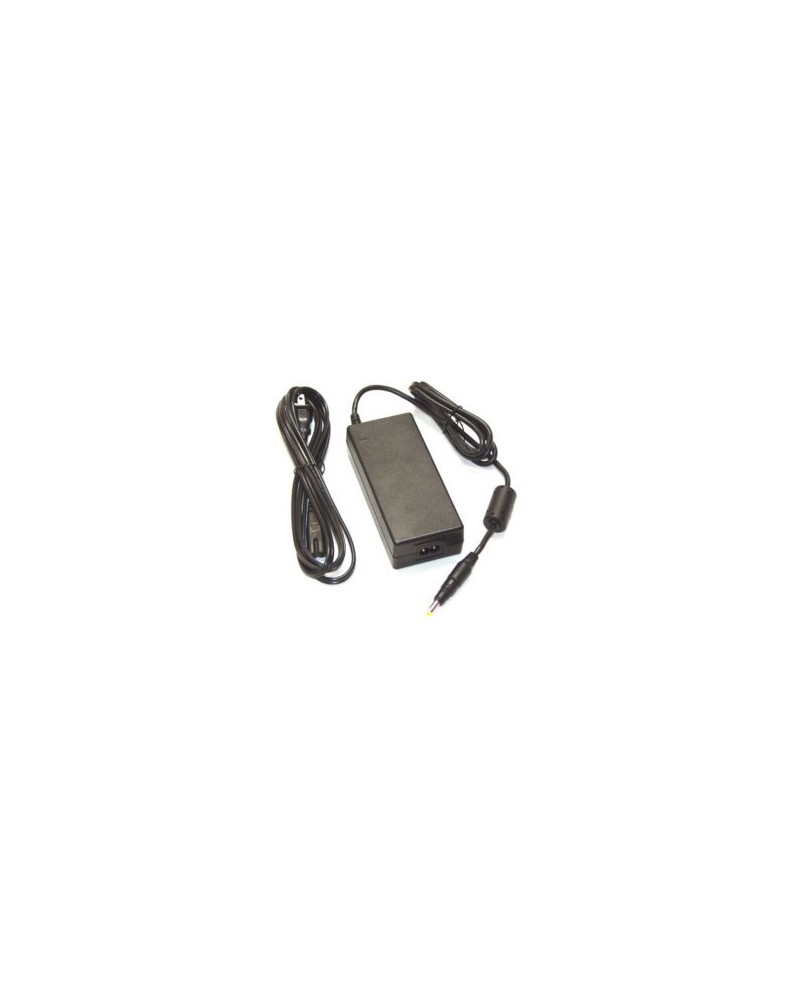

The E005277 power adapter kit will include one of the below power adapters:

E217485   PWR-BRICK,12V,50W,LVL VI,2.1D,DELTA

E757851   PWR-BRICK,12V,50W,LVL VI,2.1D,FSP

This Kit also contains one (1) AC Power Cable: Black, 1.8m, NA plug to IEC 60320-C13

Specifications:

1. SCOPE

•    This document defines the spec for Delta ADP-50YH or FSP FSP050-DIBAN2 power brick.

2. GENERAL DESCRIPTION

•    50W External Power Brick ・Level VI ・LPS ・RoHS compliant

3. GENERAL SPEC

•    Delta Power Brick

•    Dimensions 120mm (L) × 52.5mm (W) × 32.5mm (H) or 110mm (L) × 62.0mm (W) × 31.5mm (H) (without protrusion and cable)

•    Weight - Approximately 284g

•    Plug - 3pin (IEC60320-1 C14)

•    Color - Black

•    Output - DC cable

o    Length Approximately 1.8m

o    Cord 17AWG

o    Plug Outer φ5.5 Inner φ2.1

4. ENVIRONMENTAL SPEC

•    Working temp 0～40℃

•    Working humid Delta: 8～95%RH (Under non-condensation）

•    Storage temp Delta: -20～95℃

•    Storage humid 10～90%RH (Under non-condensation）5～95%RH (Under non-condensation）

5. INPUT SPEC

•    Voltage

o    Rating AC100-240V

o    Workable range AC90-264V

•    Frequency

o    Rating 50 ／60Hz

o    Workable range 47-63Hz

•    AC input current - Delta: Max.1.7A

6. OUTPUT SPEC (POWER BRICK）

•    Rating voltage - DC12V

•    Output current - Max. 4.16A

•    Ripple voltage - Less than 300mVp-p (Under normal AC power input）

7. SAFETY SPEC

•    Leak current - Delta: less than 0.60mA

•    Withstanding voltage - 3000VAC, less than 10mA, 1sec

•    Insulation resistance - DC500V, larger than 20MΩ, 1sec

•    Others

o    OVP function

o    SCP function

8. REGULATION

•    Power brick

o    Safety: PSE, UL, c-UL, Argentina S-Mark, PSB, GOST, NOM, TUV-GS, KC, CCC, BSMI

o    EMI: VCCI-B, CE, FCC, C-Tick

9. RELIABILITY

•    MTBF - Delta: 100,000 hours (Under 25℃）

10. WARRANTY

•    Warranty period is 3 years.

•    We replace production within warranty period

•    Fare-paying services are available after warranty period.

•    Charge-free is not available due to wrong operation in-warranty.

11. PRECAUTION AND OTHERS

•    For power brick only

•    Warranty void with customer modification.

•    Spec change - This spec will be updated without notice.
