Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.

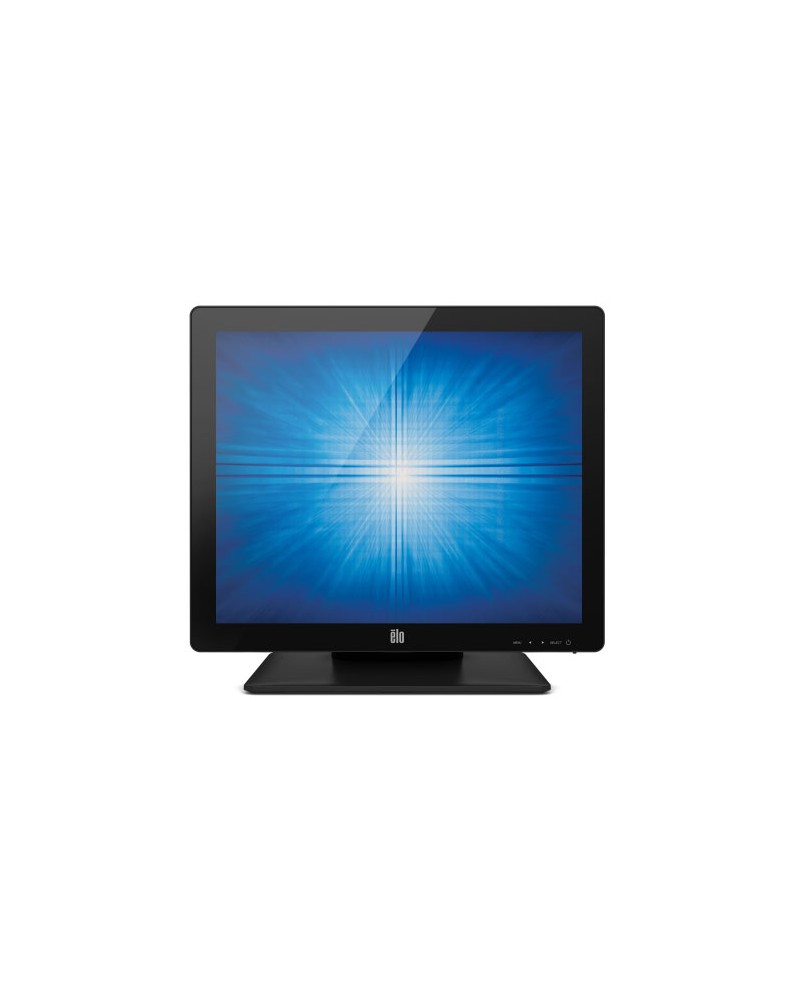

The Elo 1717L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1717L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touch monitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel. The 17-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW) and IntelliTouch zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. The 1717L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The Elo 1717L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touch monitor ensure table-top security.

Elo E179069 Overview

The 1717L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, "built for touch" industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.

The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1717L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; iTouch pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.

Technical Information

Screen Size Class:

17"

Viewable Screen Size:

17"

Screen Mode:

SXGA

Response Time:

30 ms

Aspect Ratio:

5:4

Horizontal Viewing Angle:

170°

Vertical Viewing Angle:

160°

Adjustable Display Angle:

Yes

Mount Type:

Desk Mountable

Backlight Technology:

LED

Features:

Security Lock

Horizontal Frequency:

80 kHz

Video

Maximum Resolution:

1280 x 1024

Standard Refresh Rate:

75 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

800:1

Brightness:

250 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Surface Acoustic Wave

Interfaces/Ports

USB:

Yes

VGA:

Yes

Power Description

Operating Power Consumption:

36 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

75 x 75

Color:

Black

Height with Stand:

14.17"

Width with Stand:

15.43"

Depth with Stand:

7.52"

Weight (Approximate):

12.10 lb

Miscellaneous

Package Contents:

1717L Rev A Multifunction 17-inch Desktop Touchmonitor

Power Cable

Touch/Video Cables

Certifications & Standards:

C-Tick

cUL

IC

CCC

CE

VCCI

KCC

e-Standby

CoC

BSMI

UL

FCC

CB

IMERC

Platform Supported:

PC

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

WEEE

China RoHS

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0741149334792, 0801940715975, 0818213195471, 0834619001352, 4963263160798, 7411493347924

UPC: 741149334792, 801940715975, 818213195471, 834619001352

EAN: 0741149334792, 0801940715975, 0818213195471, 0834619001352, 4963263160798, 7411493347924

UNSPSC: 43211903
