Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.

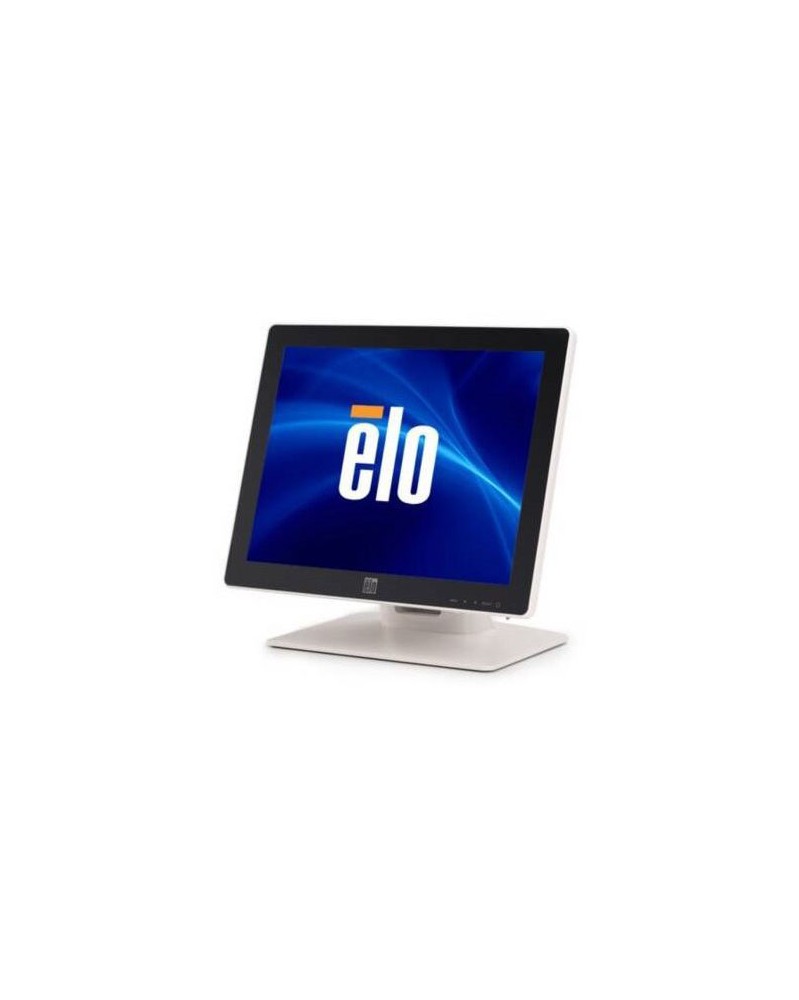

The Elo 1717L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1717L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touch monitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel. The 17-inch touchscreen monitor offers a choice of four touchscreen technologies. AccuTouch five-wire resistive is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. Both AccuTouch five-wire resistive and IntelliTouch surface acoustic wave (SAW) and IntelliTouch zero-bezel deliver the ultimate in optical quality for dry retail and hospitality applications. The 1717L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The Elo 1717L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touch monitor ensure table-top security.

Elo E854392 Overview

The 1717L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, "built for touch" industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.

Technical Information

Screen Size Class:

17"

Viewable Screen Size:

17"

Screen Mode:

SXGA

Response Time:

30 ms

Aspect Ratio:

5:4

Backlight Technology:

LED

Video

Maximum Resolution:

1280 x 1024

Color Supported:

16.7 Million Colors

Contrast Ratio:

800:1

Brightness:

250 Nit

Touchscreen Information

Touchscreen Type:

iTouch

Interfaces/Ports

USB:

Yes

VGA:

Yes

Power Description

Operating Power Consumption:

29 W

Physical Characteristics

VESA Mount Compatible:

Yes

Color:

White

Height with Stand:

14.20"

Width with Stand:

15.40"

Depth with Stand:

7.50"

Weight (Approximate):

12.10 lb

Miscellaneous

Package Contents:

1717L Rev A Multifunction 17-inch Desktop Touchmonitor

Detachable touch and video cables

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

China RoHS

WEEE

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 7411493290886

EAN: 7411493290886

UNSPSC: 43211903
