All- in- One Touchscreen Signage

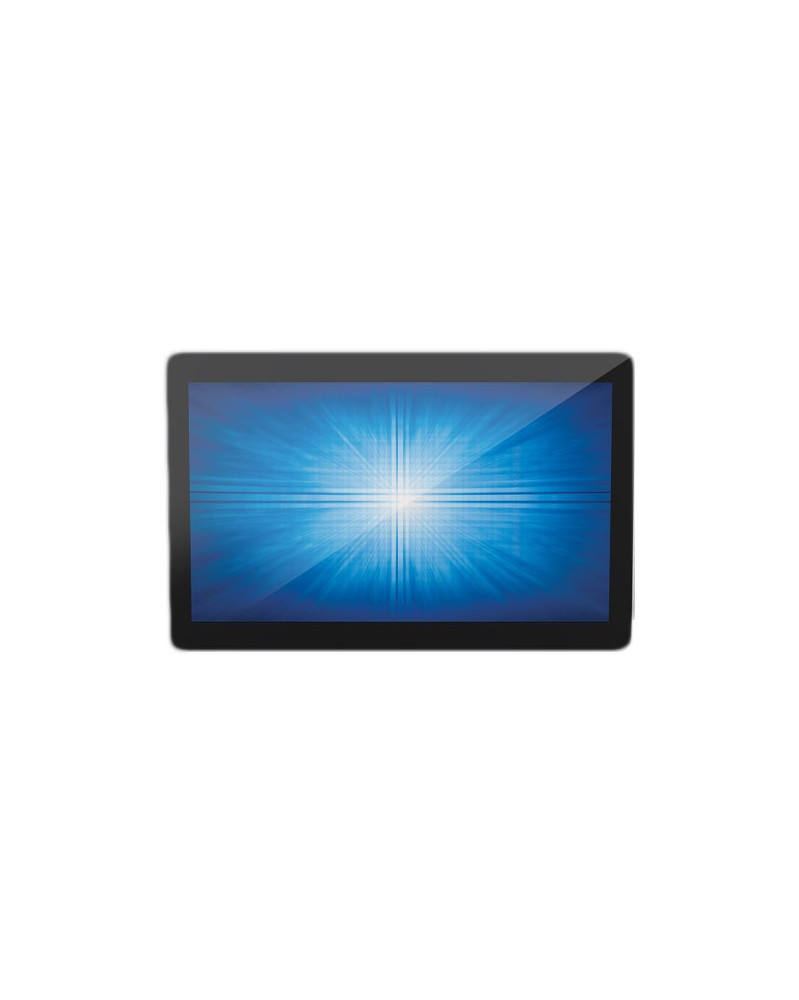

The Elo I-Series 10-inch Android all-in-one (AiO) combines a commercial-grade touchscreen with the powerful Android Qualcomm Snapdragon processor delivering a responsive AiO computer in a compact size. The I-Series AiO system delivers commercial reliability, integrated touch, and flexible mounting options designed to survive the rigors of continuous public use for in-store interaction, point of sale, self-service, wayfinding, corporate and hospitality environments. Combine the I-Series with Elo's cloud-based management software, EloView designed to simplify and automate deployment of Elo interactive displays across multiple locations

10 touch projected capacitive (PCAP) touchscreen

Compact form factor

Powerful Touchscreen

Interactive display for customers

Commercial -grade performance

Enterprise support with Elo Essential Edge

Speakers Integrated

2 year standard warranty

·        ModelElo Z20 Android POS SystemPart Number(s)Main display:

10-inch, Standard Model, Black - E389883

10-inch, Standard Model, White - E411266 (MTO)

10-inch, Value Model, Black - E390647

10-inch, Value Model, White - E411643 (MTO)

15-inch, Standard Model, Black - E390075

15-inch, Standard Model, White - E412033 (MTO)

15-inch, Value Model, Black - E391032

15-inch, Value Model, White - E412421 (MTO)

Stand:

Z20 POS Stand - E809321 (Stand Sold Separately)

Customer-facing display (Sold Separately)

1002L – E155834 and E324341

1302L – E683595 and E683787

1502L – E125496Enclosure ColorBlackTouch Technology and CapacityPCAP (TouchPro Projected Capacitive) - 10 TouchProcessorStandard Model: Qualcomm Snapdragon SDA660

Value Model: Rockchip RK3399Memory (RAM)4GBStorageStandard Model: 64GB

Value Model: 32GBOSAndroid 10 with Google Play Services and EloView content deployment and managementDiagonal Size

·        10.1'' diagonal, Active matrix TFT LCD (LED) or

·        15.6'' diagonal, Active matrix TFT LCD (LED)

·        Aspect Ratio16:9Active Area (mm)10": 8.54" x 5.34" / 217 mm x 136 mm

15": 13.55" x 7.62" / 344 mm x 194 mmResolution10" Standard Model: 1920 x 1200 @ 60Hz

10" Value Model: 1280 x 800 @ 60Hz

15": 1920 x 1080 @ 60HzNumber of Colors8-bit (16.7 million)Brightness (typical)Standard Model:

10" Standard Model: LCD Panel: 450 nits, TouchPro PCAP: 387 nits

10" Value Model: LCD Panel: 300 nits, TouchPro PCAP: 250 nits

15" Standard Model: LCD Panel: 300 nits, TouchPro PCAP: 258 nits

15" Value Model: LCD Panel: 250 nits, TouchPro PCAP: 215 nitsResponse Time-total (typical)25 msecContrast Ratio10" Standard Models: 900:1

10" Value Models: 800:1

15": 700:1Viewing Angle10": Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

15" Standard Model: Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

15" Value Model: Horizontal: ±80° or 160° total / Vertical: ±80° or 160° totalI/O PortsI-Series 4

USB 3.0 support (900mA)

USB-C output - When using the standard 65W power brick, USB-C can support up to 7.5W. When using the optional 90W power brick, USB-C can support up to 27W. See User Manual for details.

Micro SD slot

GPIO

RJ45 Ethernet LAN (Gigabit)

DC input

Z20 POS Stand  (Stand Sold Separately)

DC input

4 x USB-A 3.0 Port (900mA)

RJ12 (serial/cash drawer) 12/24V - User will need to select the mode

RJ45 Ethernet LAN (Gigabit) - Ethernet upload and download speeds will decrease to ~250Mbps when using the CFD

USB-C output - CFD (DisplayPort, Touch and Power Deliver up to 27W) - USB speeds will be reduced to 2.0 speeds when DP video is being output.Display Head ConnectionDC Jack for Power

USB-C for Data to the Z20 Stand IO HubPeripheral Mounting4x micro-USB 2.0 Elo Edge Connect ports

Support for 1.2A on one port and 500mA for the remaining three portsWebcam5MP

Standard Model: 8MP, Max Resolution: 1920x1080 30fps, Auto Focus, Focus Range: >10cm

Value Model: 5MP, Max Resolution: 1920x1080 30fps, Auto FocusWireless802.11a/b/g/n/ac + Bluetooth 5.0Audio PortsStandard Model: 2x built-in Digital Microphones

Value Model: 1x built-in Analog MicrophoneSpeakersStandard Model: 2x 0.8W

Value Model: 2x 2WPower SupplyAC input voltage: 100-240 VAC

Input frequency: 50-60 Hz

power adapter (included in accessory box)Power Consumption (Typical)10" Standard Model:

On: 8.5W

Off: 0.4W

Sleep: 4.5W

10" Value Model:

On: 7.2W

Off: 0.4W

Sleep: 3.4W

15" Standard Model:

On: 11.0W

Off: 0.4W

Sleep: 4.4W

15" Value Model:

On: 10.0W

Off: 0.4W

Sleep: 3.4WPower Over Ethernet (PoE)

·        Supported via Elo PoE Device PN: E413396

Reference the I-Series 4.0 user guide for details.

·        Dimensions10": 10.1" x 6.8" x 0.9" / 252.9 mm x 169.0 mm x 22.1 mm

15" Standard Model: 14.87" x 9.8" x 0.9" / 377.7 mm x 249.7 mm x 22.3 mm

15" Value Model: 15.3" x 9.8" x 0.9" / 389.7 mm x 249.7 mm x 22.3 mmShipping Box Dimensions10" Standard Model: 12.4" x 5.9" x 8.8" / 310 mm x 145 mm x 220 mm

10" Value Model: 12.4" x 5.5" x 9.0" / 315 mm x 140 mm x 228 mm

15" Standard Model: 17.7" x 6.5" x 12.2" / 450 mm x 165 mm x 310 mm

15" Value Model: 18.3" x 6.3" x 13.0" / 465 mm x 160 mm x 330 mmWeight (Unpackaged)10" Standard Model: 2.0 lbs / 0.9 kg

10" Value Model: 1.8 lbs / 0.8 kg

15" Standard Model: 3.9 lbs / 1.8 kg

15" Value Model: 3.5 lbs / 1.6 kgWeight (Packaged)10" Standard Model: 4.5 lbs / 2.1 kg

10" Value Model: 4.9 lbs / 2.2 kg

15" Standard Model: 7.8 lbs / 3.5 kg

15" Value Model: 7.2 lbs / 3.3 kgOperating Temperature0°C to 40°C / 32°F to 104°FStorage Temperature-20°C to 50°C / -4°F to 122°FHumidityOperating: 20% to 80%

Storage: 5% to 95%Regulatory approvals and declarationsUL/cUL (US)

FCC (US)

IC (Canada)

CE (Europe)

CB (International)

VCCI, MIC (Japan)

RCM (Australia)Supported CountriesCanada, USA, Australia, Japan, South Korea, New Zealand, Austria, Belgium, Czech Republic, Denmark, France, Germany, United Kingdom, Hungary, Italy, Netherlands, Poland, Portugal, Romania, Spain, Sweden, Switzerland, TurkeyReal-Time Clocklithium coin cell batteryMTBF50,000 hours demonstratedMounting OptionsVESA 75mmWarranty2-yearExtended Warranty OptionsI-Series 4:

3 year OS 360 - Elo P/N: E873133

5 year OS 360 - Elo P/N: E873326

3 year Warranty Coverage – Elo P/N: E819394

4 year Warranty Coverage – Elo P/N: E819598

5 year Warranty Coverage – Elo P/N: E819795

3 year Warranty Coverage + ADP – Elo P/N: E130329

4 year Warranty Coverage + ADP – Elo P/N: E130530

5 year Warranty Coverage + ADP – Elo P/N: E130719

3 year Warranty Coverage + ADP + OS 360 – Elo P/N: E130908

4 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131109

5 year Warranty Coverage + ADP + OS 360 – Elo P/N: E131294

2 year Warranty Coverage + AUR – Elo P/N: E819985

3 year Warranty Coverage + AUR – Elo P/N: E820186

4 year Warranty Coverage + AUR – Elo P/N: E820388

5 year Warranty Coverage + AUR – Elo P/N: E820582

2 year Warranty Coverage + AUR + ADP – Elo P/N: E131490

3 year Warranty Coverage + AUR + ADP – Elo P/N: E131674

4 year Warranty Coverage + AUR + ADP – Elo P/N: E131859

5 year Warranty Coverage + AUR + ADP – Elo P/N: E132053

2 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132245

3 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132432

4 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132627

5 year Warranty Coverage + AUR + ADP + OS 360 – Elo P/N: E132811

Z20 POS Stand:

3 year warranty coverage - Elo P/N: E375367

4 year warranty coverage - Elo P/N: E375573

5 year warranty coverage - Elo P/N: E375771

2 year warranty coverage + AUR - Elo P/N: E375970

3 year warranty coverage + AUR - Elo P/N: E376169

4 year warranty coverage + AUR - Elo P/N: E376362

5 year warranty coverage + AUR - Elo P/N: E376547OS SupportComplimentary security updates provided for the first three months.

Optional extended coverage available with Elo OS 360 package.SealabilityTouchscreen sealed to LCDWhat's in the BoxI-Series 4

North American Power Cable

European Power Cable

Power Brick

Quick Install Guide

Screws for cable cover door (located in the power/Ethernet bay)

Tie wrap

Z20 POS Stand  (Stand Sold Separately)

8 x M4x10 Flat-head Screw (in bag “A”)

2 x M4x6 Pan-head Screw (in bag “B”)

Screw-height tool

Installation Guide

0.3m USB-C to USB-C cable (To provide USB and Video signals to the CFD)

150W Power Brick

North American Power Cable

European Power Cable

Tie wrap

VESA Cover, Bottom, 15”

VESA Cover, Top, 15”

VESA Cover, Bottom, 10”

VESA Cover, Top, 10”

Base PlateOptional PeripheralsMagnetic Stripe Reader (MSR) – Elo P/N: E001002

Fingerprint Scanner – Elo P/N: E134286

2D Barcode Scanner (SE2707) – Elo P/N: E393160

2D Barcode Scanner (SE4720) – Elo P/N: E384627

2D Barcode Scanner (SE4107) – Elo P/N: E245047

POE Module Kit - Elo P/N: E413396

Status Light (Micro-USB Connectivity) - Elo P/N: E644767

Temperature Sensor Pro – Elo P/N: E534879

3D Camera - Elo P/N: E134699

Webcam - Elo P/N: E201494

Expansion Module – Elo P/N: E809509

RFID - Elo P/N: E673037Stands, Mounts & Kits65W Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304

90W Replacement Cable Kit (NA & EU power cables and 90W power brick) - Elo P/N: E413579
