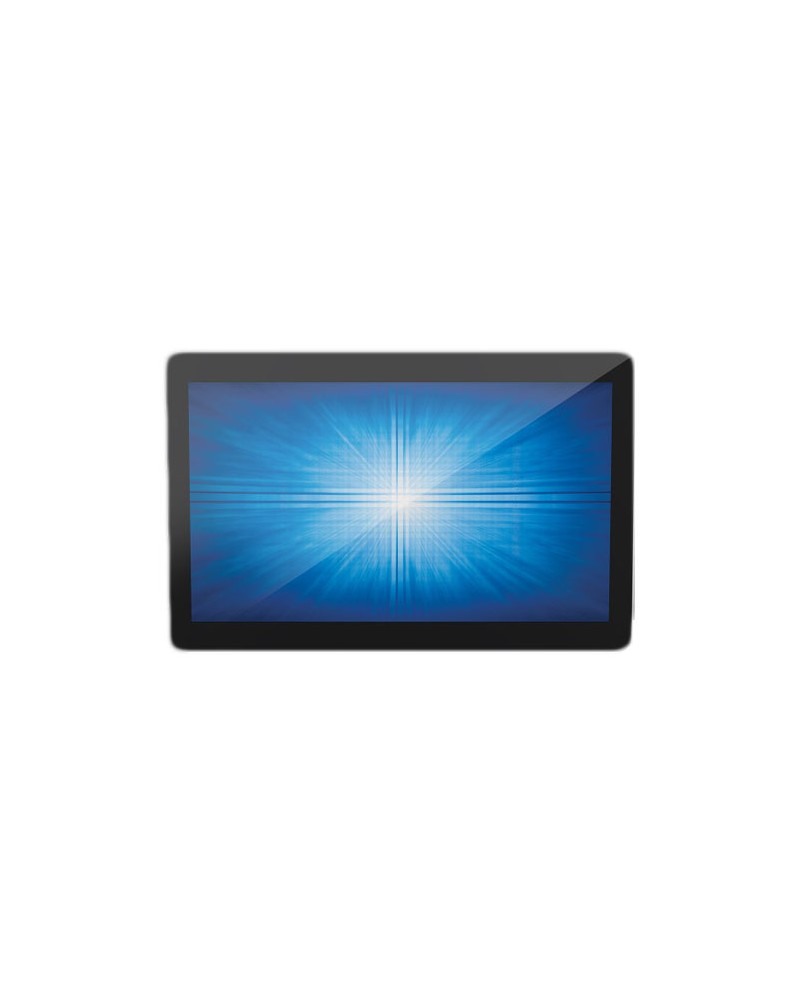

All- in- One Touchscreen Signage

The Elo I-Series 10-inch Android all-in-one (AiO) combines a commercial-grade touchscreen with the powerful Android Qualcomm Snapdragon processor delivering a responsive AiO computer in a compact size. The I-Series AiO system delivers commercial reliability, integrated touch, and flexible mounting options designed to survive the rigors of continuous public use for in-store interaction, point of sale, self-service, wayfinding, corporate and hospitality environments. Combine the I-Series with Elo's cloud-based management software, EloView designed to simplify and automate deployment of Elo interactive displays across multiple locations

Design

Chassis type

All-in-One

Product colour

White

Display

Contrast ratio (typical)

700:1

Display brightness

300 cd/m²

Display diagonal

15.6 "

Display number of colours

16.78 million colours

Display resolution

1920 x 1080 Pixels

Display type

TFT

Effective viewing area

344 x 194 mm

Response time

25 Millisecond

Touchscreen

Y

Touchscreen technology

Projected capacitive system

Viewing angle, horizontal

178 °

Viewing angle, vertical

178 °

Ergonomics

Mean time between failures (MTBF)

50000 Hour

Panel mounting interface

75 x 100

VESA mounting

Y

Memory

Internal memory

4 GB

Multimedia

Built-in speaker(s)

Y

Card reader integrated

Y

Compatible memory cards

MicroSD (TransFlash)

Number of speakers

2

Network

Bluetooth

Y

Ethernet LAN

Y

Ethernet LAN data rates

1000

Wi-Fi

Y

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Operational conditions

Operating relative humidity (H-H)

20 - 80 %

Operating temperature (T-T)

0 - 40 °C

Storage relative humidity (H-H)

5 - 95 %

Storage temperature (T-T)

-20 - 50 °C

Package dimensions

Gross Weight (Package, kg)

1.8 kg

Packaging content

Cables included

AC

Quick start guide

Y

Packaging data

Quantity per pack

1 pc(s)

Ports & interfaces

DC-in jack

Y

Ethernet LAN (RJ-45) ports

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

Power

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Power consumption (typical)

11 Watt

Processor

Processor model

SDA660

Product dimensions

Depth (product,cm)

2.23 cm

Height (product,cm)

24.97 cm

Net Weight (Product, kg)

1.7 kg

Product Width

37.77 cm

Software

Operating system installed

Android 10

Storage

Total storage capacity

64 GB

Vendor information

Brand Name

Elo Touch Solutions

Warranty

2 Year(s)
