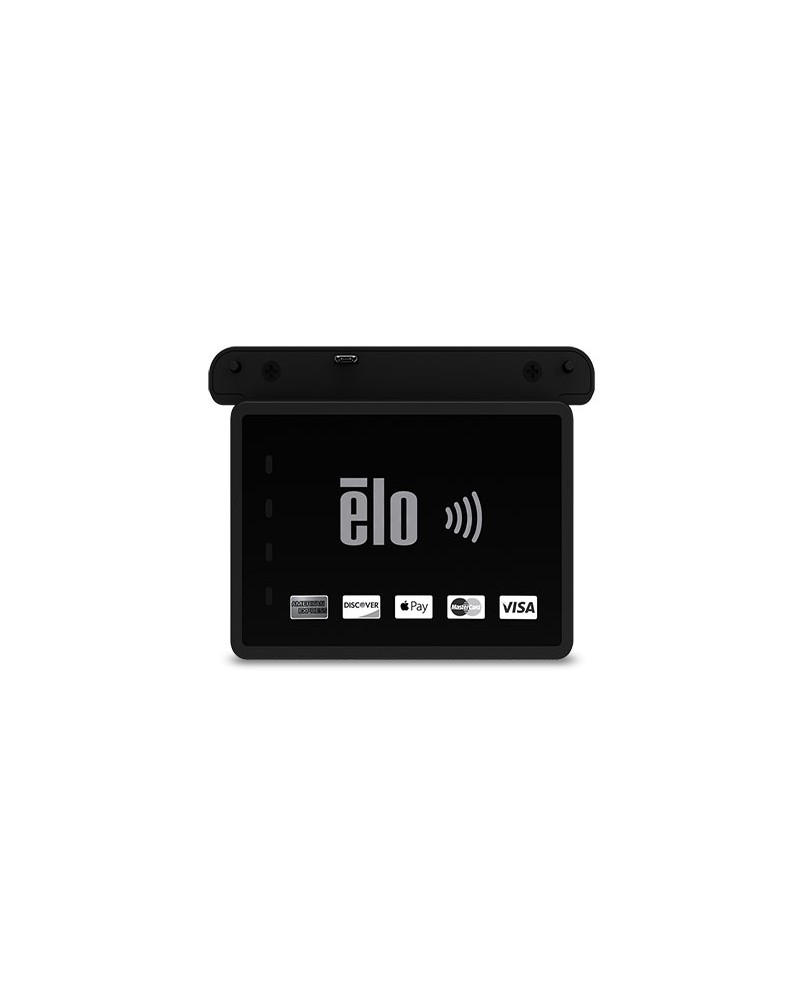

The Near Field Communication (NFC) adapter for mobile payments offers increased compatibility with the latest point of sale applications. The accessory is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

Part Number(s)

E001004

Enclosure Color

Black

Power Supply

5VDC ± 5%

Interface

USB

Interface Modes

HID Keyboard and USB Virtual COM

Frequency Range

13.56 MHz

Communication Signal

Standard RS232 signal level

Compatible with USB 2.0 specification

TTL 5V signal level (optional)

Comm Signal Logic 1 = ‐3 volts to ‐15 volts or TTL level 5 volts

(RS232) Logic 0 = +3 volts to +15 volts or TTL level 0 volt

Communication Range

40mm

MIFARE Applications

Read/Write of MIFARE Plus/Classic/Ultralight/DESFire cards

Support MIFARE higher baud rate up to 424KHz

Operating modes

Read/Write

Peer-to-Peer

Card emulation

Supported Operating Systems

Windows POSReady 7 32-bit

Windows Embedded Pro 7 32-bit

Windows Embedded Pro 7 64-bit

Windows Industry Embedded Pro 8.1 32-bit

Windows Industry Embedded Pro 8.1 64-bit

Android 4.4.2

Payment Applications

American Express ExpressPay

Discover ZIP

MasterCard PayPass/MCHIP

Visa MSD/qVSDC

Google wallet

Weight (Unpackaged)

0.35 lbs/ 0.16 Kg

Weight (Packaged)

0.60 lbs/ 0.27 Kg

Warranty

2-year
