Allows user to switch print resolution simply by changing printheads.

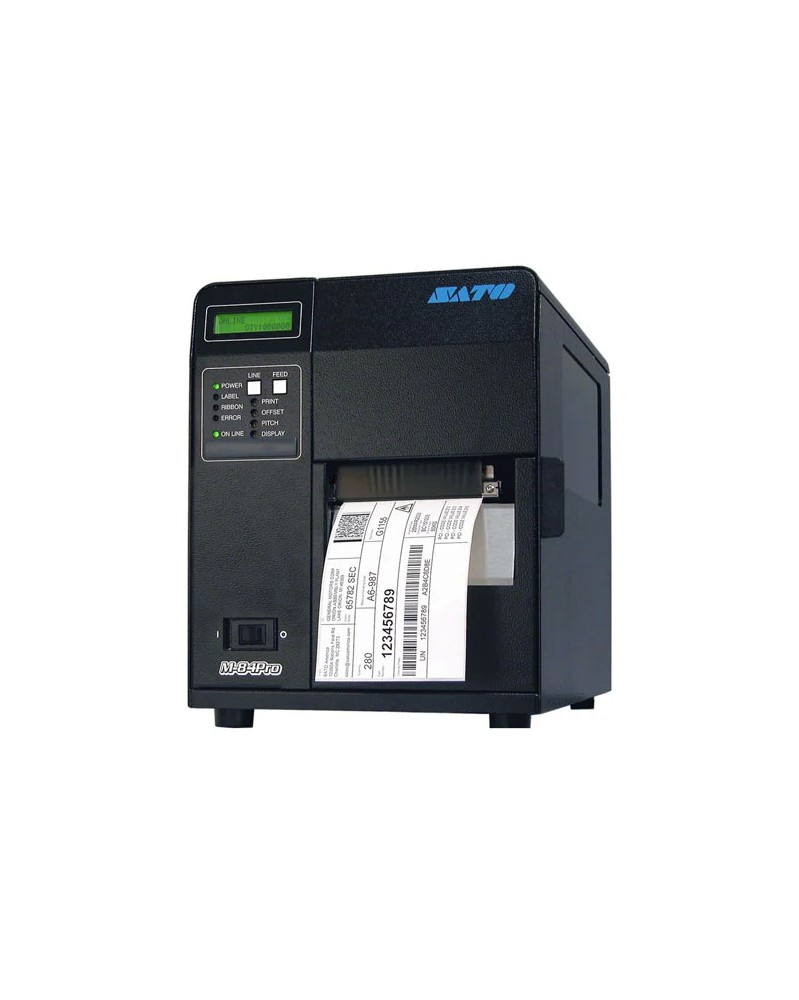

The M84Pro(2) delivers 4.1" print width at rapid 10 ips with virtually Zero-Compile time by using the latest generation of 32-bit RISC 133 MHz CPU. The M84Pro(2) has a 203 dots-per-inch print resolution, which can be changed to either 305 or 609 dpi simply by switching printheads. All resolutions support the full 4.1" print width. All SATO Pro Series printers come with a minimum of 16MB RAM and 2MB Flash for storage of forms, fonts and graphics. Optional Flash module or PCMCIA memory card expands the printer storage capabilities even further. The M84Pro(2) is available with a vast array of interface connection plug-in modules making integration connectivity issues disappear.

Technical Information

·        Maximum Mono Print Speed: 10 in/s

·        Maximum Print Resolution: 203 dpi

·        Maximum Print Width: 4.10"

·        Recommended Use: Label Print

·        Barcode Symbology Supported:

o   UPC-A

o   UPC-E

o   ITF-14

o   UCC/EAN 128

o   Code 128

o   Interleaved 2 of 5

o   Code 39

o   RSS

o   POSTNET

o   EAN-13

o   EAN-8

o   MSI

o   Codabar

o   Bookland

o   Matrix 25

o   Data Matrix

o   Maxi Code

o   PDF-417

o   QR Code

o   Micro PDF-417

General Information

·        Product Type: Direct Thermal/Thermal Transfer Printer

·        Product Series: Pro

·        Brand Name: Sato

·        Manufacturer: Sato Corporation

·        Product Model: M84Pro

·        Product Name: M84Pro Thermal Label Printer

Physical Characteristics

·        Height: 13.4"

·        Width: 10.4"

·        Depth: 17.1"

Interfaces/Ports

·        Parallel Port: Yes

Media Types & Handling

·        Maximum Label Width: 5"

·        Maximum Label Length: 49.20"

·        Media Type:

o   Roll Fed

o   Fanfold

o   Die-cut Label

o   Continuous Form

o   Direct Thermal Paper

o   Thermal Transfer Label

o   Synthetic Media

o   Tag Stock

o   Black Mark

o   Notched

·        Media Sensor:

o   Reflective Media Sensor

o   Transmissive Media Sensor

·        Maximum Roll Diameter: 8.60"

Other

·        Platform Supported: PC

·        Certifications & Standards:

o   CE

o   UL

o   CSA

o   TÜV

·        Additional Information:

o   Adjustable transmissive sensor for gap

o   Reflective sensor for black mark

o   Automatic programmable setting of top of form

o   Label present sensor

Power Description

·        Input Voltage:

o   110 V AC

o   220 V AC

Memory

·        Standard Memory: 16 MB

·        Flash Memory: 2 MB

Warranty

·        Limited Warranty: 1 Year

Brand

SATO

Model

M84Pro(2)

Print Resolution

203 dpi

Print Method

Thermal Transfer

Interface Options

Parallel

Print Speed

10

Maximum Print Width

4.10

Max Roll Outer Diameter

8.6

Printer Type

Industrial

Label Core

3 inches

Max Label Width

5.00

Labels Per Day

5,001 - 10,000

Printer Mobility

Not Mobile

Ribbon Core

1
