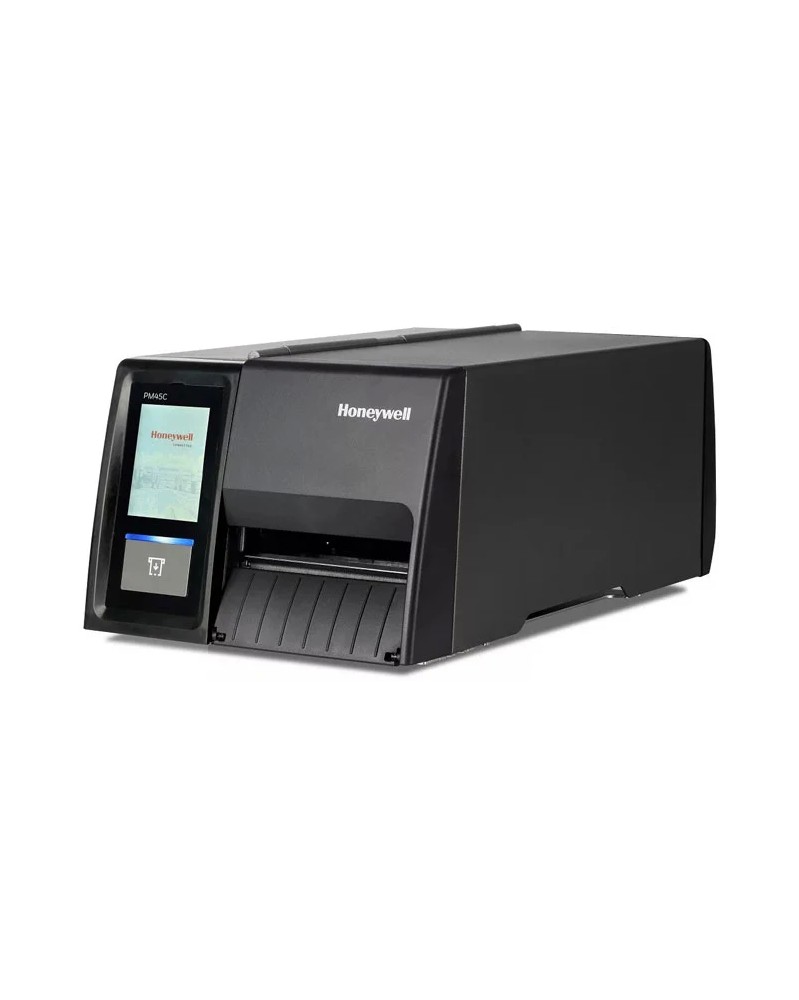

The Honeywell PM45a industrial printer is designed to tacakle increasing challenges relating to production flexiblity, cost control, and inventory turnover. The PM45a provides businesses with the versatility and precision needed for high-volume printing. With enhanced WWAN connectivity, the PM45a enables deployment with minimal limitation from site network topology. The PM45a simplifies last minute changes with the embedded Honeywell Smart Parse software that allows for quick position changes, sizing of objects and barcodes, and font type on labels, without requiring changes to a backend system or any additional programming.
Interface Bluetooth 5.0, Gigabit LAN, Serial, USB 2.0, USB 2.0 host, Wi-Fi(ac)
Interface Required Connections1 x Gigabit LAN - RJ-45, 1 x RS-232 - 9 pin D-Sub (DB-9), 1 x USB 2.0 - 4 pin USB Type B, 2 x USB 2.0 host - 4 pin USB Type A
Max B/W Print Resolution
203 dpi
Max H-Document
Size4.5 in
Max Mono Print Speed
826.8 Inches per minute
Max Print Length
189 inch
Max Print SizeRoll
(4.5 in)
Max Roll Diameter
8.4 inch
Maximum Print Width
4.25 inch
Min H-Document Size
0.75 in
Print Output Type
Monochrome
Print Speed Up to
826.8 inch/min
max speed
203 dpi
Wireless Print Technology
Wired, Wireless
Wireless Print Technology
Ready Yes
Scanning
Barcode Symbology Supported AIAG, Aztec code, Codabar, Code 11, Code 128, Code 16K, Code 39, Code 49, Code 93, Data Matrix, EAN/JAN, Grid Matrix Code, GS1 Data Bar, HIBCC, Industrial 2 of 5, Interleaved 2 of 5, ISBT 128, LOGMARS, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI-Plessey, PDF417, PLANET, Plessey, Postnet, QR code, Standard 2 of 5, UCC/EAN-128, UPC
