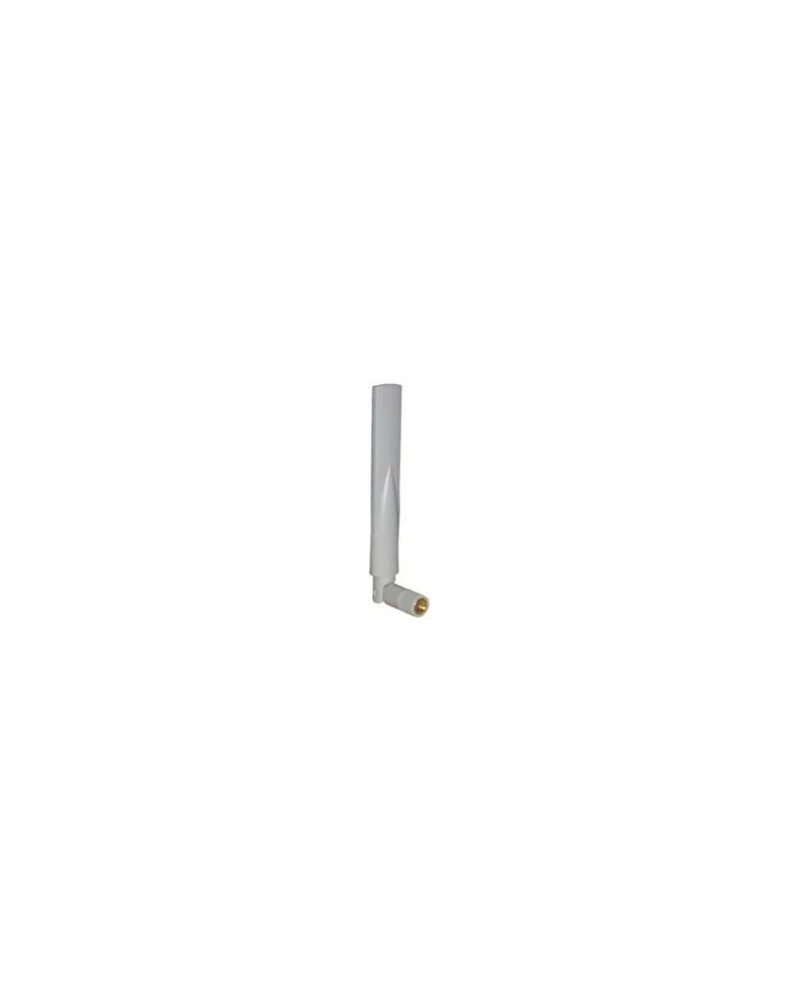

AP-ANT-20W is a compact, dual-band indoor antenna ideally designed for multifunction APs that require omnidirectional coverage for the 2.4-GHz and 5-GHz bands. It features an articulating mount for deployment flexibility and connects directly to Aruba APs via external RP-SMA antenna connectors. It is offered in two colors to match the colors of Aruba indoor APs. HPE Aruba JW011A Ap-ant-20w 2.4-2.5ghz (2dbi)/4.9-5.875ghz (2dbi) Compact Omni-dir Dmt Indr White Antenna.

 FREQUENCY/MAX GAIN • 2.4-2.5 GHz (2.0 dBi) • 4.9-5.875 GHz (2.0 dBi)       POLARIZATION • Linear, vertical. Omnidirectional patterns at all frequencies          BEAMWIDTH • E-plane: 80 degrees • H-plane: 360 degrees        IMPEDANCE • 50 ohms        MAXIMUM INPUT POWER • 2 watts VSWR (MINIMUM PERFORMANCE) • < 2.0:1      DIMENSIONS (MM) • 79 x 35.3 x 10 with articulating mount at 90 degree angle • 102 x 14.8 x 10 fully extended ENCLOSURE • POM/ABS FLY CABLE LENGTH/CONNECTOR • Articulating mount with built-in RP-SMA ARUBA AP-ANT-20W INDOOR ANTENNAS JW011A OPERATING TEMPERATURE • -10° C to +55° C (+14° F to +131° F) INSTALLATION HARDWARE • N/A – antenna mounts directly to an Aruba AP
