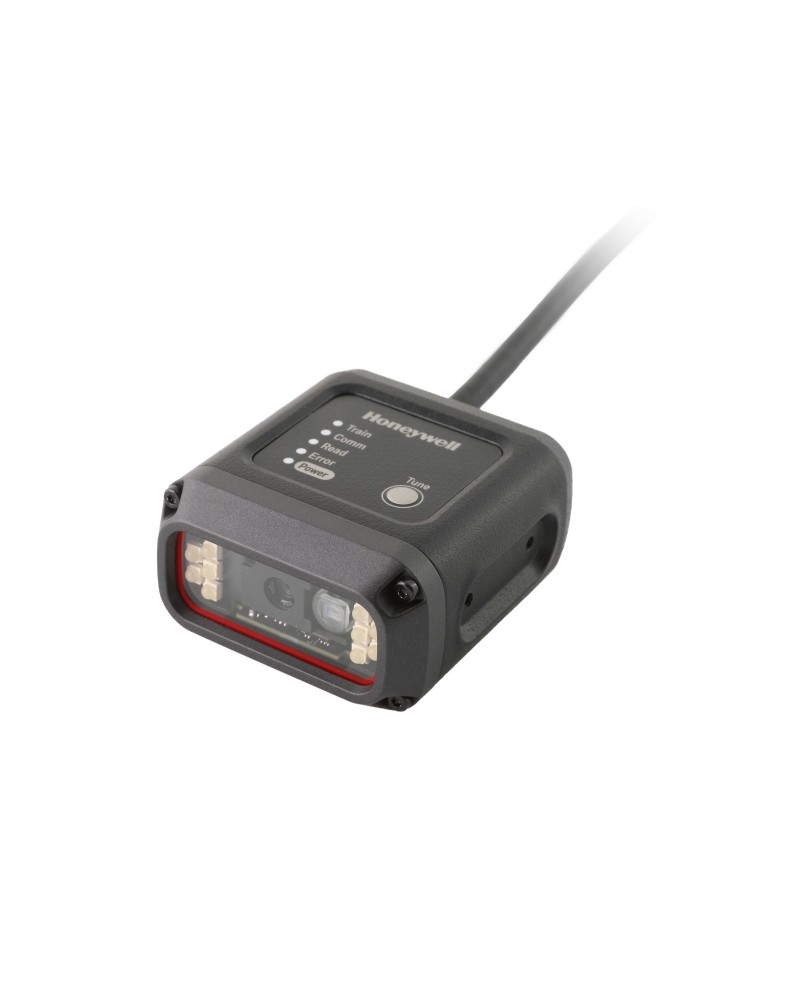

The new fixed-mounting industrial reader HF800 delivers outstanding barcode reading capability for all types of 1D and 2D codes including those on printed labels and the most difficult direct part mark (DPM), making it perfect for production data tracking for PCB and precision electronic parts, food production process management and confirmation of logistics barcode on the external packing cartons for electric/mechanical parts. HF800 is equipped with imager with a resolution of 500K-pixel which is capable of collecting images at 60 fps. Its built-in red LED light source combined with exceptional DPM decoding algorithm enables HF800 to have powerful DPM resolution. In addition, its compact size makes it ideal for use in industrial environment with limited space. The IP65 protection rating also ensures that it can handle various harsh working environments. HF800 is also equipped with DataMax software, as well as AutoLearn function. The user can complete image setting with just one button, a significant convenience for any bar code reader.

DESCRIPTION Dimensions: Horizontal: 54.5*52.5*29mm Vertical: 73.2*52.5*29mm Weight (device only): Horizontal: 210g Vertical: 265g Housing Material: Zinc alloy Decoding Performance: 1D bar code: PDF417 2D codes: QR Code, Datamatrix, Maxicode, Aztec IMAGER Imager: 838x640, CMOS chip, Global shutter Imaging Speed: 60 fps Available Models: 3 versions for different work distance and FOV: HD, SR and ER Learning Button: Includes learning button for quick setting Aiming Device: 0 – Laser indicator; 90  – LED indicator Dispersed Input: 2*photoelectric dispersed input; definition can be programed Dispersed Output: 2*photoelectric dispersed output; definition can be programed Status Output: Five-status LED, buzzer Power: Standard 10VDC-30VDC Power Consumption: Max 5W Communication: RS232, R S485 and Ethernet ports Network mode: Master/Slave TEMPERATURE Operating Temperature: 0ºC to 50ºC Storage Temperature: -20ºC to 70ºC SYSTEM ARCHITECTURE IP Rating: IP65 Operating System: Windows XP, Vista, Windows 7,10Paragraph Style = Table: Title

TYPICAL PERFORMANCE FOR HD, SR AND ER MODELS* IMAGER 0 DEGREE 90 DEGREE HF800HD 4mil Code 39 50~80mm 25~55mm 5mil Code 39 3 0~115mm 25~90mm 13 mil UPC 40~175mm 25~150mm 10 mil datamatrix 22~128 mm 25~105mm 20 mil datamatrix 23~195mm 25~170mm HF800SR 5mil Code 39 64~140mm 39~115mm 13 mil UPC 55~405mm 30~380mm 10 mil datamatrix 62~190mm 37~165mm 20 mil datamatrix 47~375mm 25~350 HF800ER 5mil Code 39 147~218mm 122~193mm 13 mil UPC 71~480mm 46~455mm 10 mil datamatrix 135~250mm 110~225mm 20 mil datamatrix 102~400mm 77~375mm
